FF1400R23T2E7P_B5 Description

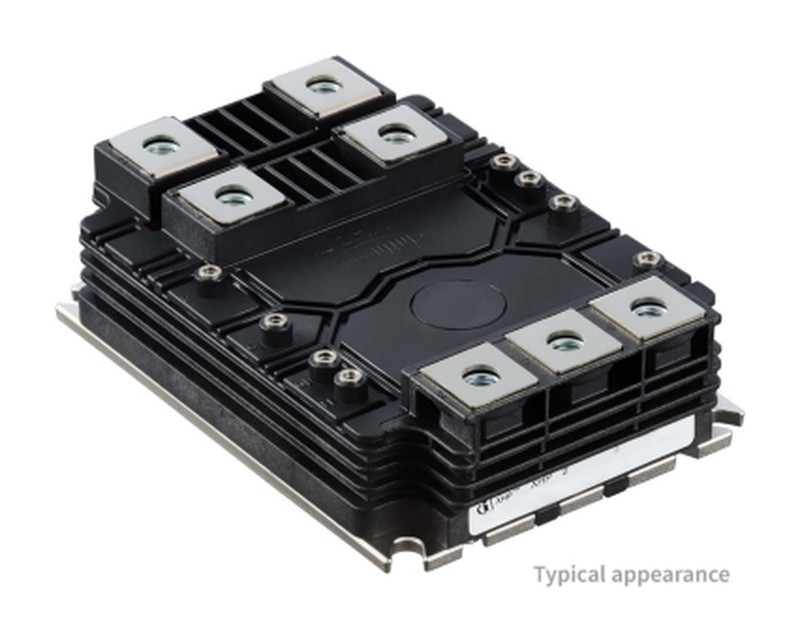

FF1400R23T2E7P_B5 is a 2,300 V / 1,400 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT7). Datasheet ratings: ICRM 2,800 A, VCE(sat) 1.85 V typ. at 1,400 A, 6.0 kV isolation, Tvj op up to 175 °C. Potential applications: High-power converters, Motor drives, Wind turbines. Infineon lists it as active and preferred.

USComponent supplies FF1400R23T2E7P_B5 and other Infineon / eupec IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

FF1400R23T2E7P_B5 is a 2,300 V / 1,400 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT7).

  • VCES = 2300 V, IC nom = 1400 A / ICRM = 2800 A
  • Tvj,op = 175 °C
  • Low VCE,sat
  • Low switching losses
  • High current density
  • Low inductive design
  • High power density
  • High creepage and clearance distances
  • Package with CTI > 600
  • 6 kV AC insulation
  • Pre-applied thermal interface material

Target Applications

Infineon FF1400R23T2E7P_B5 is used for High-power converters, Motor drives and Wind turbines.

Key Specifications

FF1400R23T2E7P_B5 is a 2,300 V / 1,400 A XHP™ 2 half-bridge IGBT module from Infineon Technologies (TRENCHSTOP™ IGBT7). Source: Infineon datasheet (2025-07-29).

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
HousingXHP™ 2
ConfigurationHalf-bridge (dual)
TechnologyTRENCHSTOP™ IGBT7, pre-applied thermal interface material
Collector-emitter voltage (VCES)2,300 V
Nominal collector current (IC nom)1,400 A
Continuous DC collector current1,050 A (TH = 50 °C (heatsink), Tvj max = 175 °C)
Repetitive peak collector current (ICRM)2,800 A
VCE(sat), IC = 1,400 A, VGE = 15 V, Tvj = 25 °C1.85 V typ. / 2.30 V max.
Gate threshold voltage VGEth (Tvj = 25 °C)5.15 / 5.80 / 6.45 V (min. / typ. / max.)
Diode forward voltage VF, IF = 1,400 A, Tvj = 25 °C3.05 V typ. / 3.45 V max.
Temperature under switching conditions (Tvj op)-40 to +175 °C
Storage temperature (Tstg)-40 to +150 °C
Isolation test voltage (VISOL, RMS, 50 Hz, 1 min)6.0 kV
Mounting torque, module (M6)4.25 - 5.75 N·m
Terminal connection torque (M3)0.9 - 1.1 N·m
Terminal connection torque (M8)8 - 10 N·m
Weight720 g
Dimensions140 x 100 mm
Ordering code (OPN)FF1400R23T2E7PB5BPSA1
Status (Infineon)Active and preferred
Applications (datasheet)High-power converters, Motor drives, Wind turbines
DatasheetAvailable on this page (PDF)
