FF450R45T3E4_B5 Infineon - IGBT Module

Also written as: FF450R45T3E4-B5

Category: IGBT Modules

Specifications: 4500V, 450A

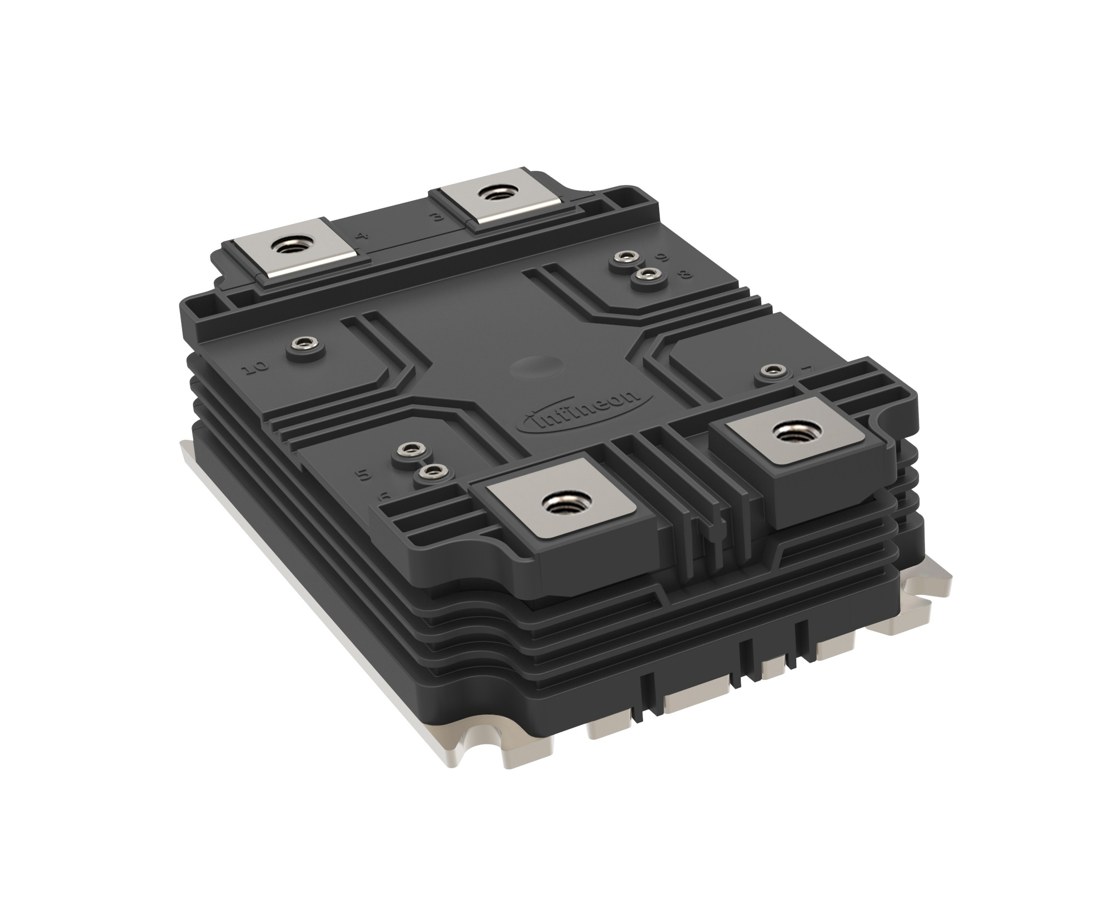

FF450R45T3E4_B5 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FF450R45T3E4_B5 Description

FF450R45T3E4_B5 is a 4500 V / 450 A dual (half-bridge) IGBT module from Infineon Technologies. Typical applications: traction drives, Medium-voltage converters.

USComponent supplies FF450R45T3E4_B5 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • High dynamic robustness
  • Trench IGBT 4
  • Package with CTI > 600
  • AlSiC base plate for increased thermal cycling capability
  • High creepage and clearance distances

Target Applications

Infineon FF450R45T3E4_B5 is used for Traction drives, Medium-voltage converters.

Key Specifications

FF450R45T3E4_B5 is a 4500 V / 450 A dual (half-bridge) IGBT module from Infineon Technologies (XHP 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)4500 V
Nominal collector current (IC nom)450 A
PackageXHP 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF450R45T3E4_B5 (reply within 24 hours)
