FF1500R12IE5P Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 1500A

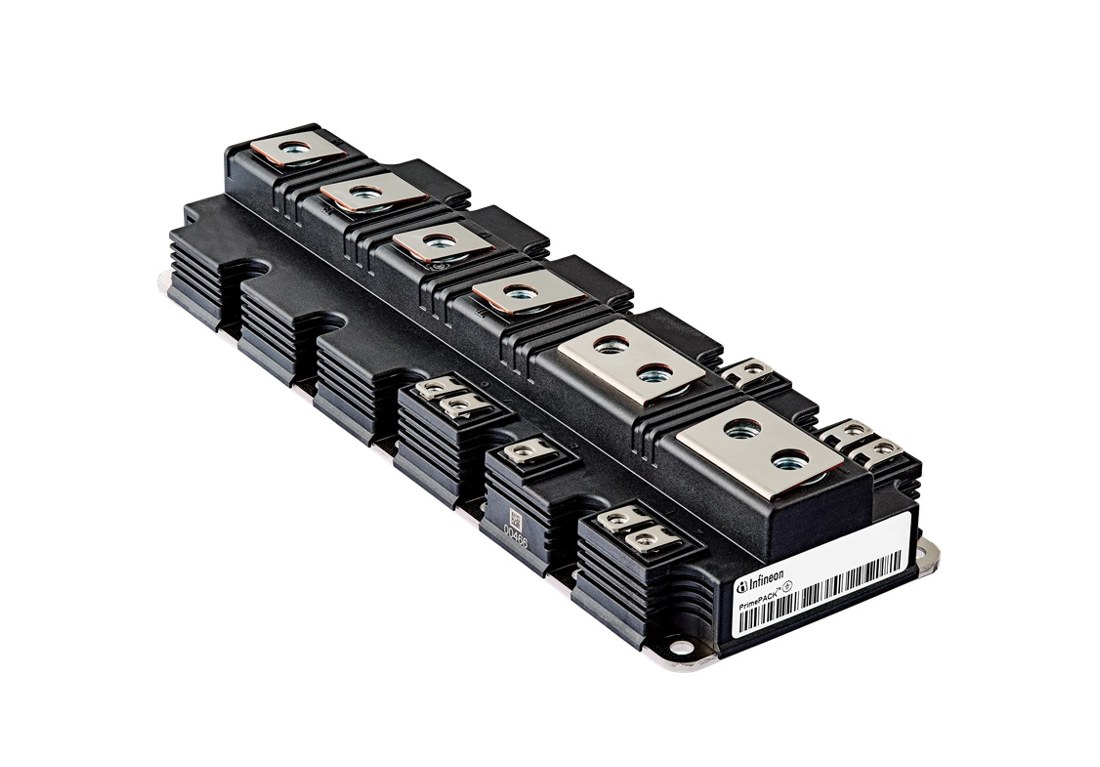

FF1500R12IE5P Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FF1500R12IE5P Description

FF1500R12IE5P is a 1200 V / 1500 A dual (half-bridge) IGBT module from Infineon Technologies.

USComponent supplies FF1500R12IE5P and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Extended operating temperature Tvj op
  • High short-circuit capability
  • Unbeatable robustness
  • Trench IGBT 5
  • High creepage and clearance distances
  • High power and thermal cycling capability
  • High power density
  • Pre-applied Thermal Interface Material

Target Applications

Infineon FF1500R12IE5P finds applications in various industries and systems where high power switching is required.

Key Specifications

FF1500R12IE5P is a 1200 V / 1500 A dual (half-bridge) IGBT module from Infineon Technologies (PrimePACK 3+ package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationDual (half-bridge)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)1500 A
PackagePrimePACK 3+
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FF1500R12IE5P (reply within 24 hours)
