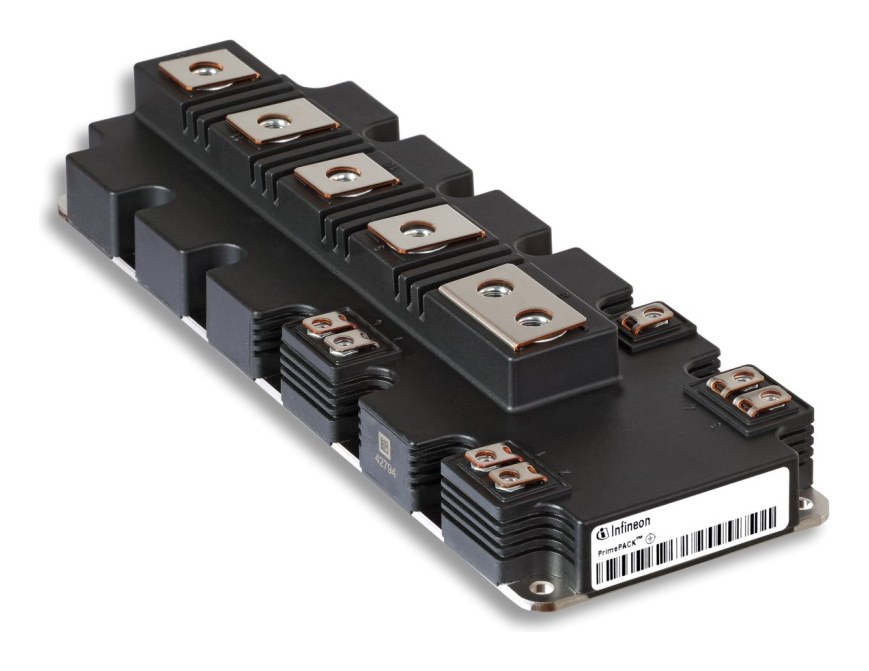

FF1500R17IP5R Infineon - IGBT Module

FF1500R17IP5R Description

FF1500R17IP5R is a 1700 V, 1500 A Infineon PrimePACK 3 dual IGBT module (IGBT5), used for high-power converters, wind turbines and motor drives.

USComponent supplies FF1500R17IP5R and other Infineon IGBT modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon FF1500R17IP5R is used for high power converters, motor drives, traction drives and wind turbines.

Key Specifications

FF1500R17IP5R is a 1,700 V, 1,500 A Infineon PrimePACK 3 IGBT module. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC nom)	1,500 A
Technology	Trench/Fieldstop IGBT5 with Emitter Controlled 5 diode
Package	PrimePACK 3
Max. operating junction temperature	175 °C

Technical document (PDF)  |  Request a quote for FF1500R17IP5R (reply within 24 hours)
