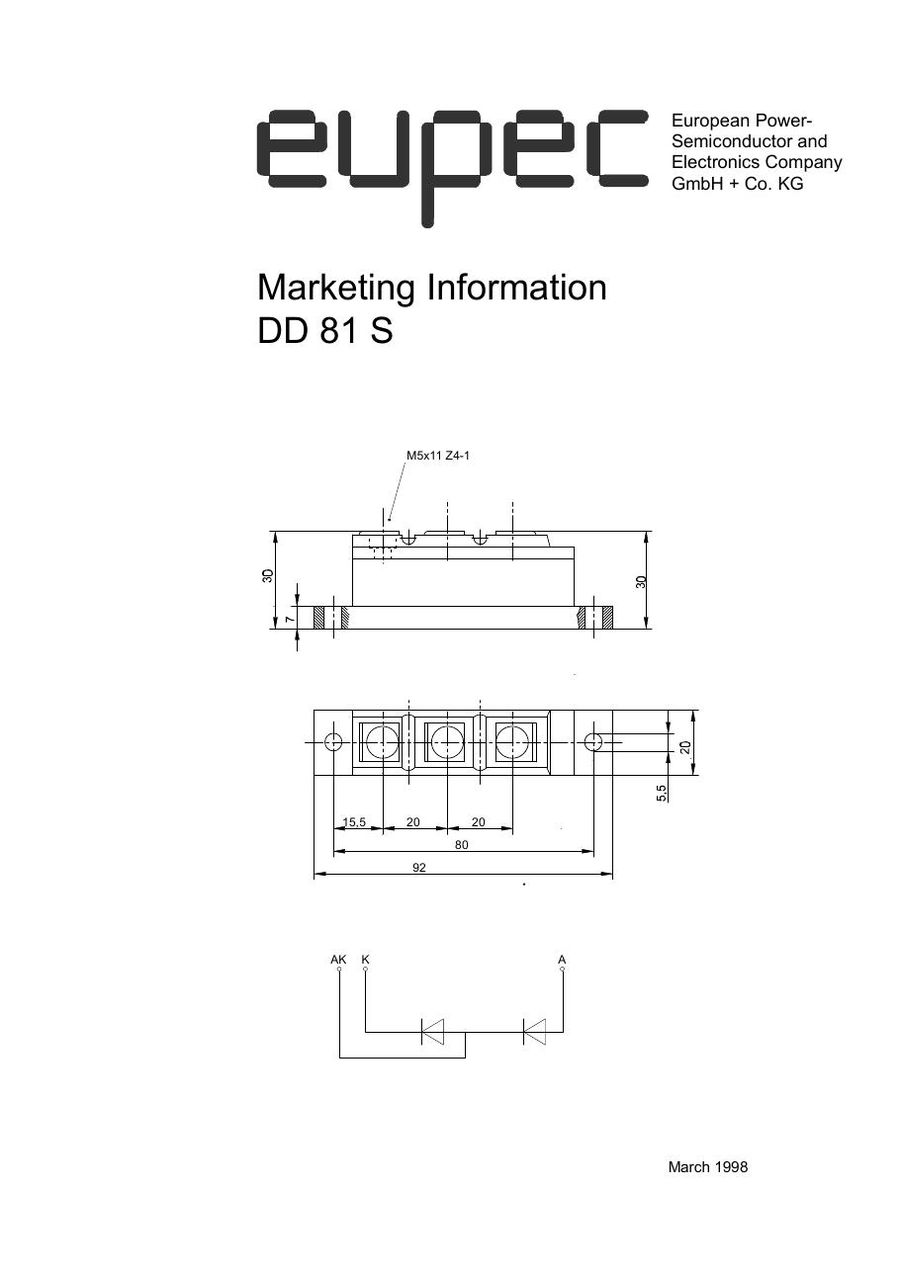

DD81S16 Infineon Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

DD81S16 Description

Infineon Technologies DD81S16 is a diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the DD81S16; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Target Applications

Infineon DD81S16 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

DD81S16 is an eupec (Infineon) PowerBLOCK fast diode module. Source: eupec Power Semiconductors Shortform Catalog 2003 (catalog page available on this page as PDF).

ParameterValue
Manufacturereupec (Infineon Technologies)
Product typePowerBLOCK fast diode module
Repetitive peak reverse voltage (VRRM), series range1000 to 1400 V
Average forward current (IFAVM), 180° el sin81 A at Tc = 100 °C
RMS current (IFRMSM)150 A
Surge current (IFSM), 10 ms, Tvj max1900 A
I²t, 10 ms, Tvj max18.05 × 10³ A²s
Threshold voltage V(T0)0.95 V
Slope resistance rT1.7 mΩ
Peak reverse recovery current IRM87 A
Thermal resistance RthJC0.48 °C/W
Thermal resistance RthCK0.16 °C/W
Max. junction temperature Tvj max150 °C
Package (outline)DP20

Technical document (PDF)  |  Request a quote for DD81S16 (reply within 24 hours)
