2DI30D-050Fuji Electric - Darlington Module

2DI30D-050 Description

The Fuji Electric 2DI30D-050 is a Darlington transistor module rated at 600 V and 30 A. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI30D-050.

Summary of Features

Target Applications

Fuji Electric 2DI30D-050 is used for High Power Switching DC Motor Controls Uninterruptible Power Supply.

Key Specifications

2DI30D-050 is a 500 V, 30 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	30 A
Datasheet	Available on this page (PDF)

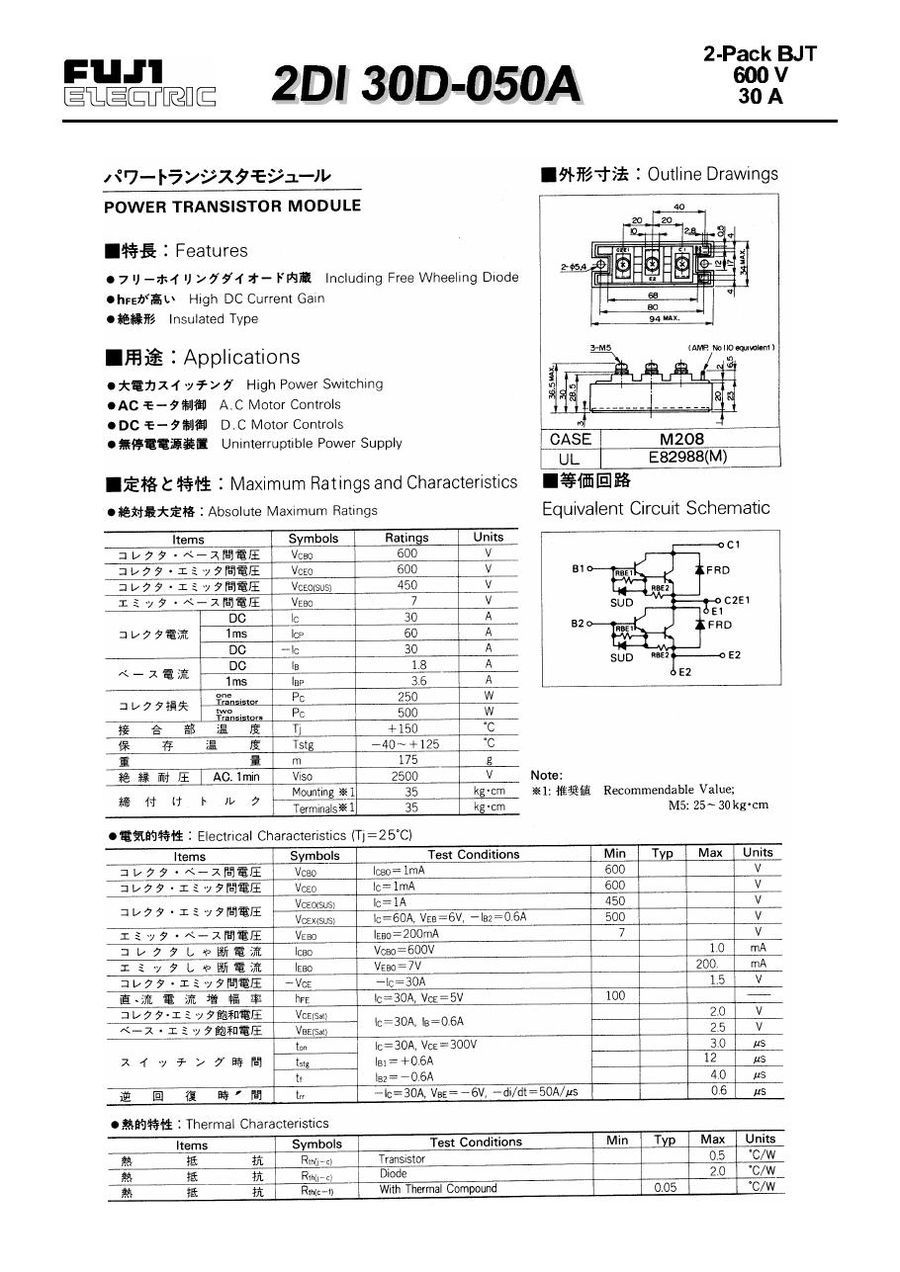

Download 2DI30D-050 Datasheet

2DI30D-050 PDF Datasheet
