2DI30A-140Fuji Electric - Power Transistor Module

2DI30A-140 Description

The Fuji Electric 2DI30A-140 is a Darlington transistor module rated at 1400 V and 300 A, available from USComponent. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI30A-140.

Target Applications

Fuji Electric 2DI30A-140 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

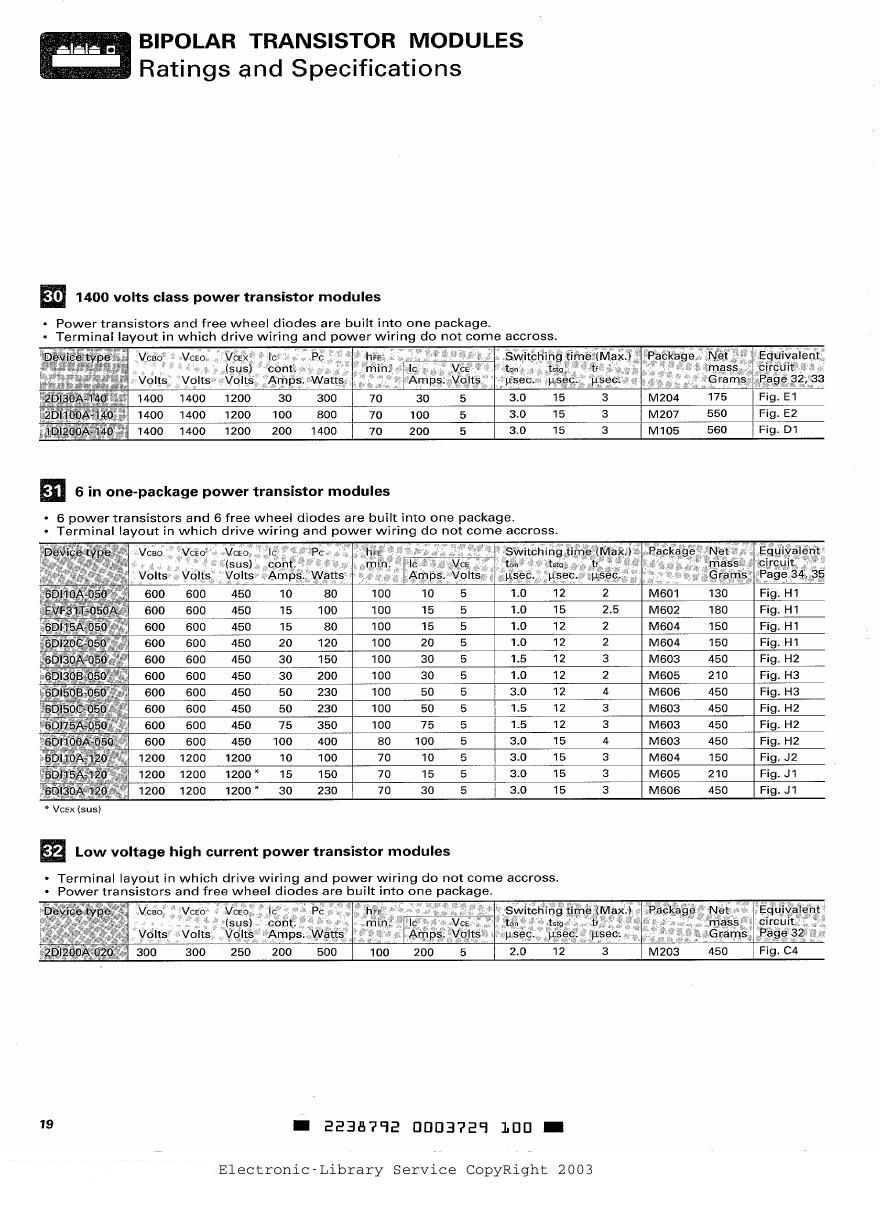

Manufacturer	Fuji Electric
Configuration	1400 V class power transistor module with free-wheeling diodes, terminal layout separates drive and power wiring
VCBO / VCEO	1400 V / 1400 V
VCEX(sus)	1200 V
IC	30 A (continuous)
Collector power dissipation	300 W
hFE min.	70 @ 30 A, VCE = 5 V
Switching time max.	ton 3.0 µs / tstg 15 µs / tf 3 µs
Package	M204
Weight	175 g
