2DI75D-050 Fuji Electric - Bipolar Transistor Module

2DI75D-050 Description

The 2DI75D-050 from Fuji Electric is a Darlington transistor module with a 500 V / 75 A rating. The module contains two switches in a half-bridge (2-in-1) arrangement. It was a workhorse in drives and power supplies before IGBTs took over, and it is still needed to repair that equipment.

We help engineers and repair technicians find parts like the 2DI75D-050, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Fuji Electric 2DI75D-050 is used for High Power Switching, Uninterruptible Power Supply, AC Motor Controls and Welding machines.

Key Specifications

2DI75D-050 is a 500 V, 75 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	75 A

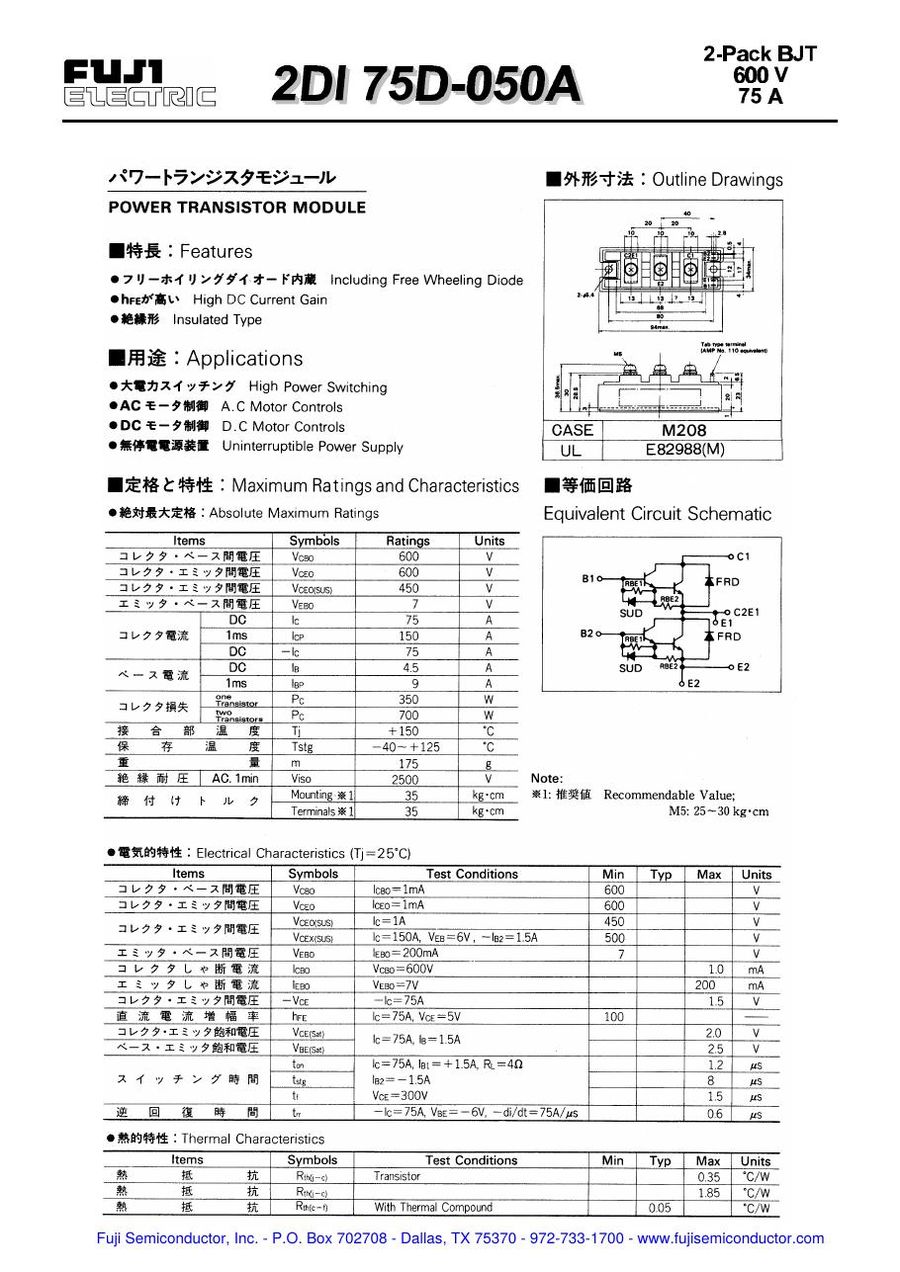

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI75D-050 (reply within 24 hours)
