2DI30M-050-01Fuji Electric - Darlington Module

2DI30M-050-01 Description

Fuji Electric 2DI30M-050-01 is a Darlington transistor module rated at 600 V and 30 A. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI30M-050-01.

Summary of Features

Target Applications

Fuji Electric 2DI30M-050-01 is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

2DI30M-050-01 is a 500 V, 30 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	30 A
Datasheet	Available on this page (PDF)

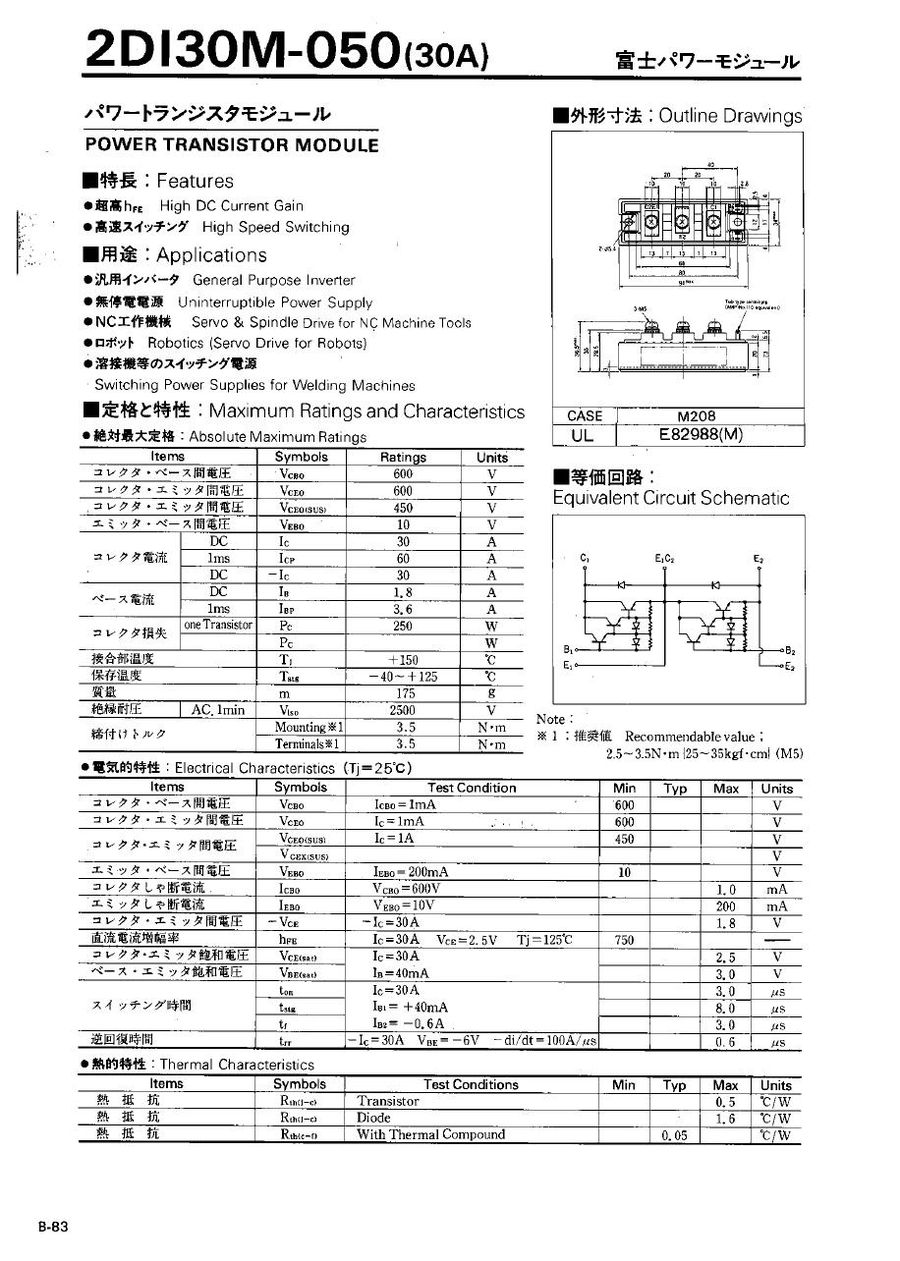

Download 2DI30M-050-01 Datasheet

Datasheet not available
