2DI100D-050Fuji Electric - Darlington Module

2DI100D-050 Description

The Fuji Electric 2DI100D-050 is a Darlington transistor module rated at 500 V and 100 A, available from USComponent. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI100D-050.

Summary of Features

Target Applications

Fuji Electric 2DI100D-050 is used for high-power traction inverters and choppers, medium-voltage motor drives, static VAR compensators and other high-power converters.

Key Specifications

2DI100D-050 is a 500 V, 100 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	500 V
Collector current (IC)	100 A
Datasheet	Available on this page (PDF)

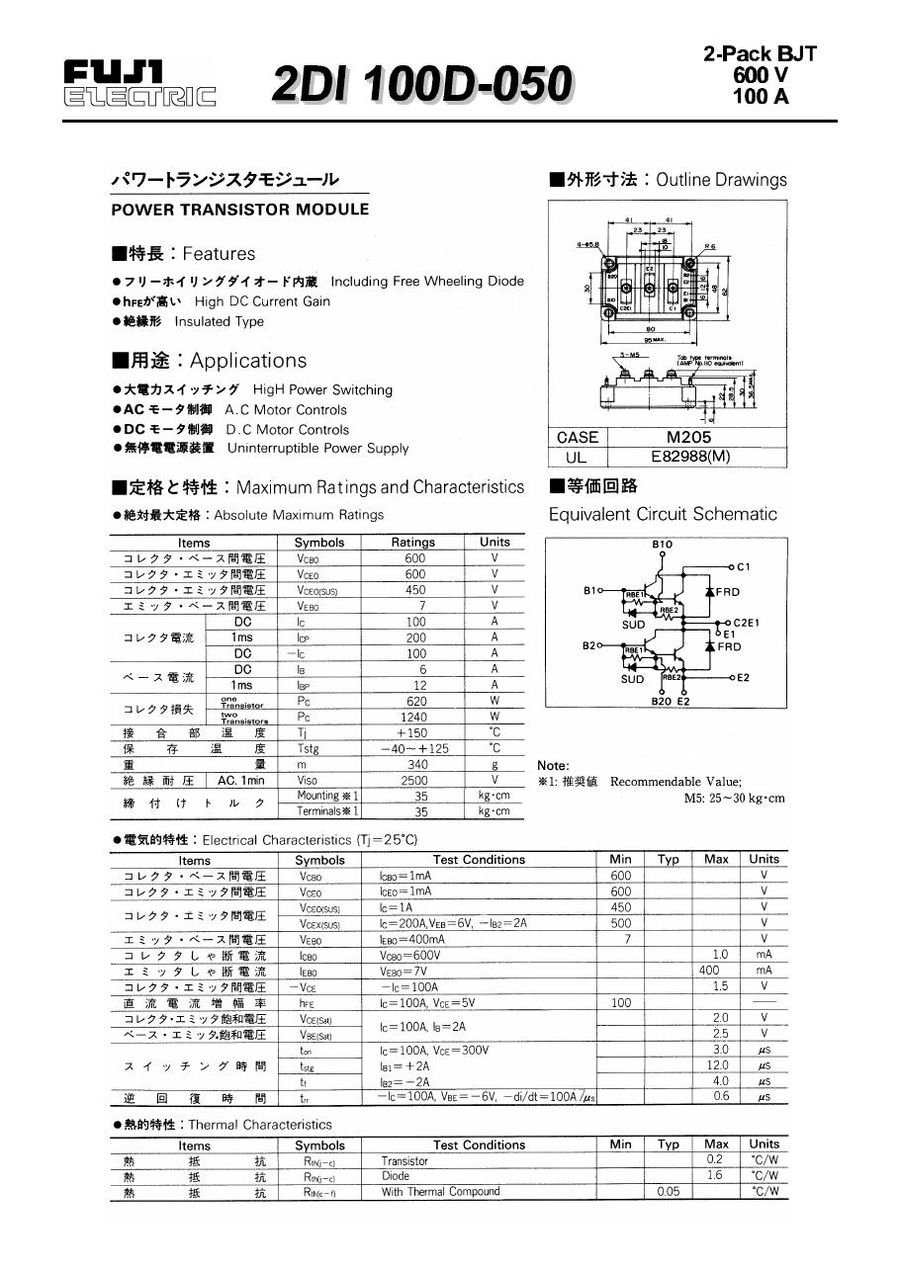

Download 2DI100D-050 Datasheet

2DI100D-050 PDF Datasheet
