2DI50D-100Fuji Electric - Power Transistor Module

2DI50D-100 Description

The Fuji Electric 2DI50D-100 is a Darlington transistor module rated at 1000 V and 50 A, available from USComponent. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the 2DI50D-100.

Summary of Features

Target Applications

Fuji Electric 2DI50D-100 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

2DI50D-100 is a 1,000 V, 50 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,000 V
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

Download 2DI50D-100 Datasheet

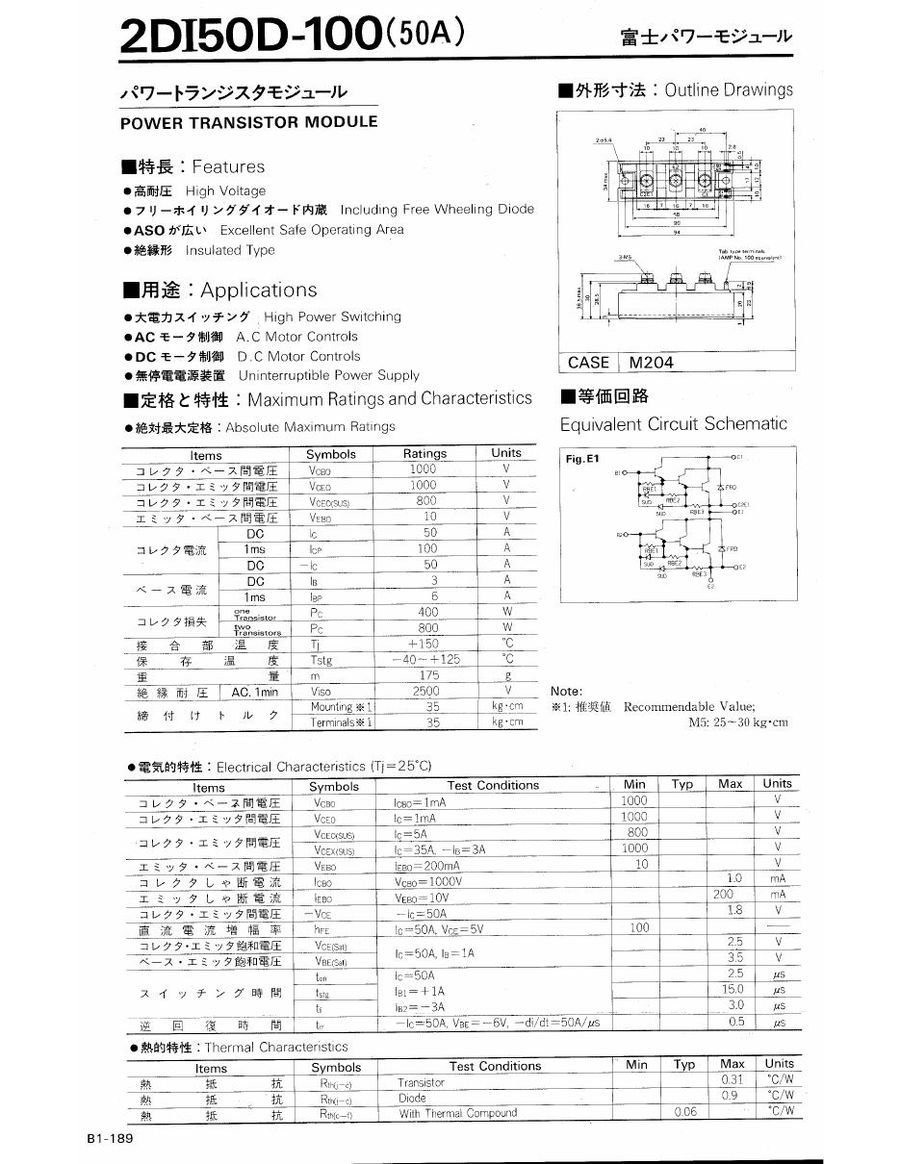

2DI50D-100 PDF Datasheet
