2DI30Z-100 Description

2DI30Z-100 is a 1000 V, 30 A Darlington transistor module made by Fuji Electric. The module contains two switches in a half-bridge (2-in-1) arrangement. You will mostly see it in older AC drives, servo amplifiers and UPS systems, where a like-for-like replacement keeps the machine running.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the 2DI30Z-100; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Fuji Electric 2DI30Z-100 is used for High Power Switching, Uninterruptible Power Supply, DC Motor Controls and Welding Machines.

Key Specifications

2DI30Z-100 is a 1,000 V, 30 A power transistor (bipolar Darlington) module, dual configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Configuration	Dual
Collector-emitter voltage (VCES)	1,000 V
Collector current (IC)	30 A

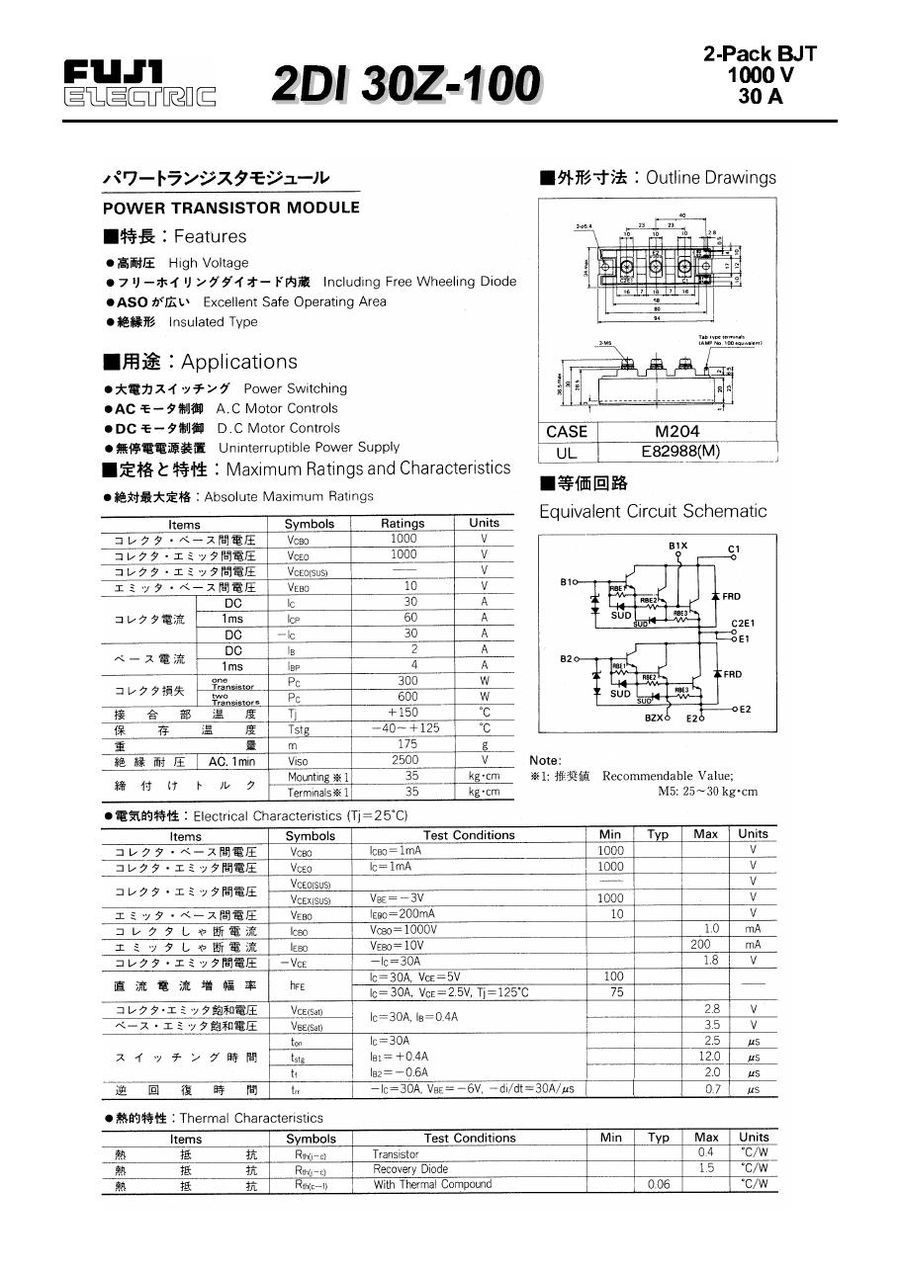

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for 2DI30Z-100 (reply within 24 hours)
