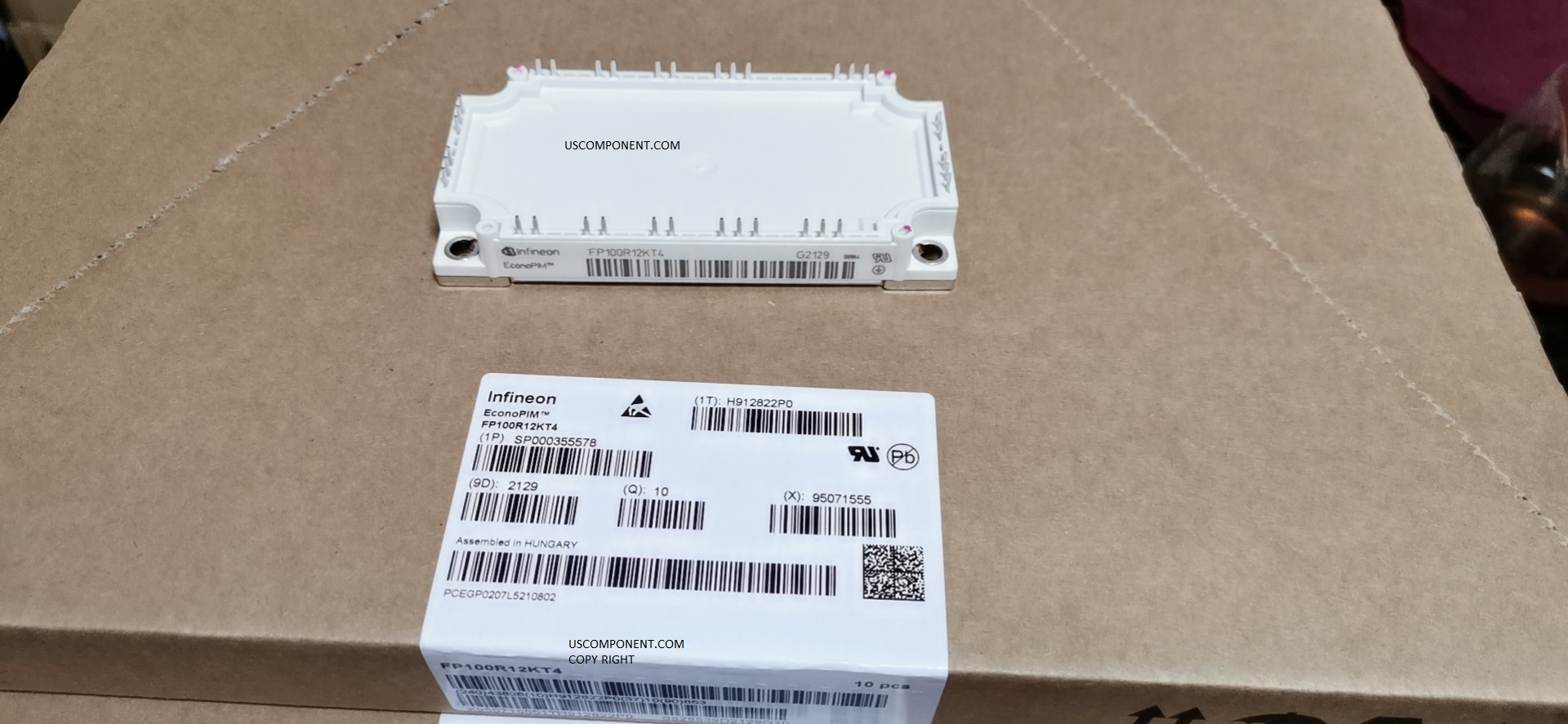

FP100R12KT4-B11 Infineon - IGBT

FP100R12KT4-B11 Description

Infineon Technologies (formerly Eupec) makes the FP100R12KT4-B11, an IGBT module. Inside, it has a PIM layout, with the input rectifier, brake chopper and three-phase inverter in one package. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the FP100R12KT4-B11; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Target Applications

Infineon FP100R12KT4-B11 is used for Auxiliary Inverters, Air Conditioning, Motor Drives.

Key Specifications

Manufacturer	Infineon Technologies
Configuration	PIM - three-phase inverter + rectifier + brake chopper, with NTC
Package	EconoPIM 3, PressFIT contact technology, copper base plate
Technology	Fast Trench/Fieldstop IGBT4, Emitter Controlled 4 diode
VCES	1200 V
IC nom / ICRM	100 A / 200 A
Operating junction temperature	150 °C
UL	E83335
