FP100R12N3T7 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 100A

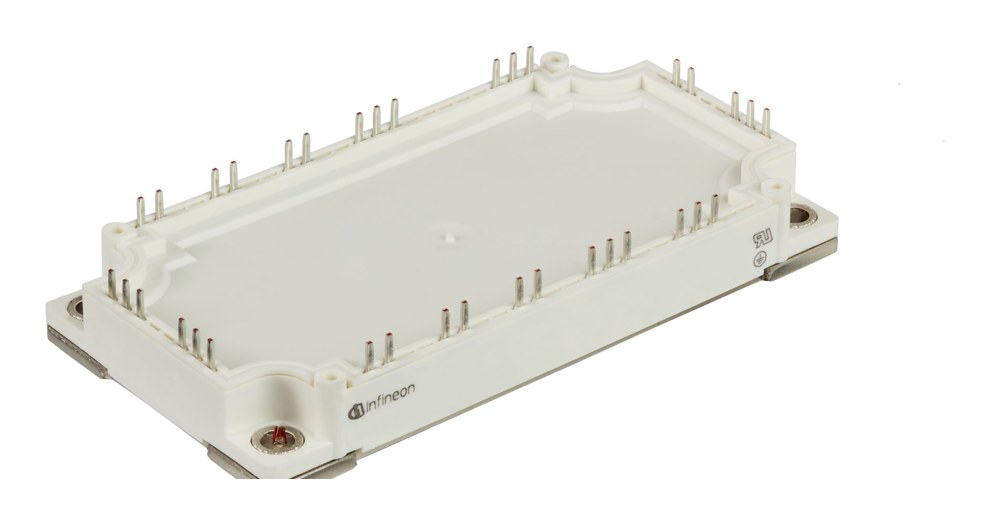

FP100R12N3T7 Infineon IGBT Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

FP100R12N3T7 Description

FP100R12N3T7 is a 1200 V, 100 A Infineon EconoPIM 3 IGBT module (pim), used for motor drives, auxiliary inverters and servo drives.

USComponent supplies FP100R12N3T7 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • 1,200 V / 100 A power integrated module (PIM)
  • TRENCHSTOP IGBT7, overload operation up to 175 °C
  • EconoPIM 3 housing, copper base plate
  • Integrated NTC temperature sensor

Target Applications

Infineon FP100R12N3T7 is used for Motor drives, auxiliary inverters and servo drives.

Key Specifications

FP100R12N3T7 is a 1,200 V, 100 A Infineon IGBT module. Source: manufacturer datasheet.

ParameterValue
Product typeIGBT module
ConfigurationPIM (rectifier + brake chopper + 3-phase inverter)
Collector-emitter voltage (VCES)1,200 V
Collector current (IC nom)100 A
TechnologyTRENCHSTOP IGBT7 with Emitter Controlled 7 diode
PackageEconoPIM 3

Technical document (PDF)  |  Request a quote for FP100R12N3T7 (reply within 24 hours)
