FP100R07N3E4_B11 Infineon - IGBT Module

Also written as: FP100R07N3E4-B11

Category: IGBT Modules

Specifications: 650V, 100A

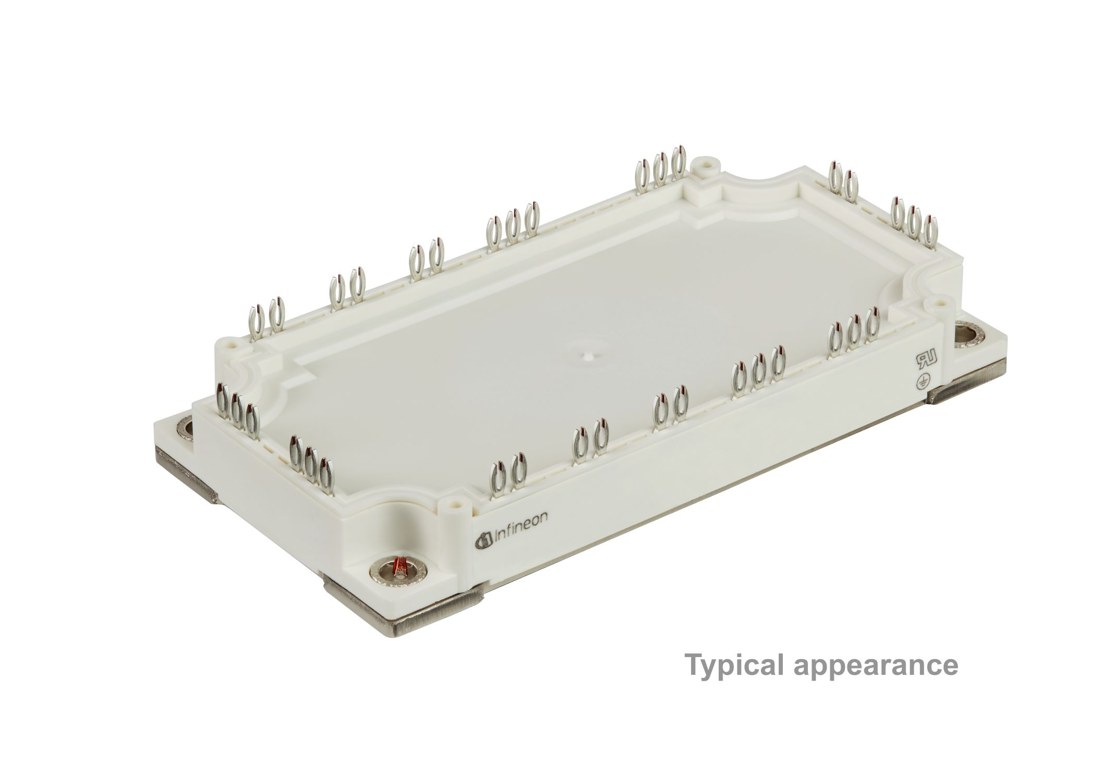

FP100R07N3E4_B11 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FP100R07N3E4_B11 Description

FP100R07N3E4_B11 is a 650 V / 100 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: motor drives.

USComponent supplies FP100R07N3E4_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Increased blocking voltage capability up to 650 V
  • High short-circuit capability
  • Trench IGBT 4
  • VCE,sat with positive temperature coefficient
  • Integrated NTC temperature sensor

Target Applications

Infineon FP100R07N3E4_B11 is used for Motor drives.

Key Specifications

FP100R07N3E4_B11 is a 650 V / 100 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 3 package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM (rectifier + brake + inverter)
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)100 A
PackageEconoPIM 3
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FP100R07N3E4_B11 (reply within 24 hours)
