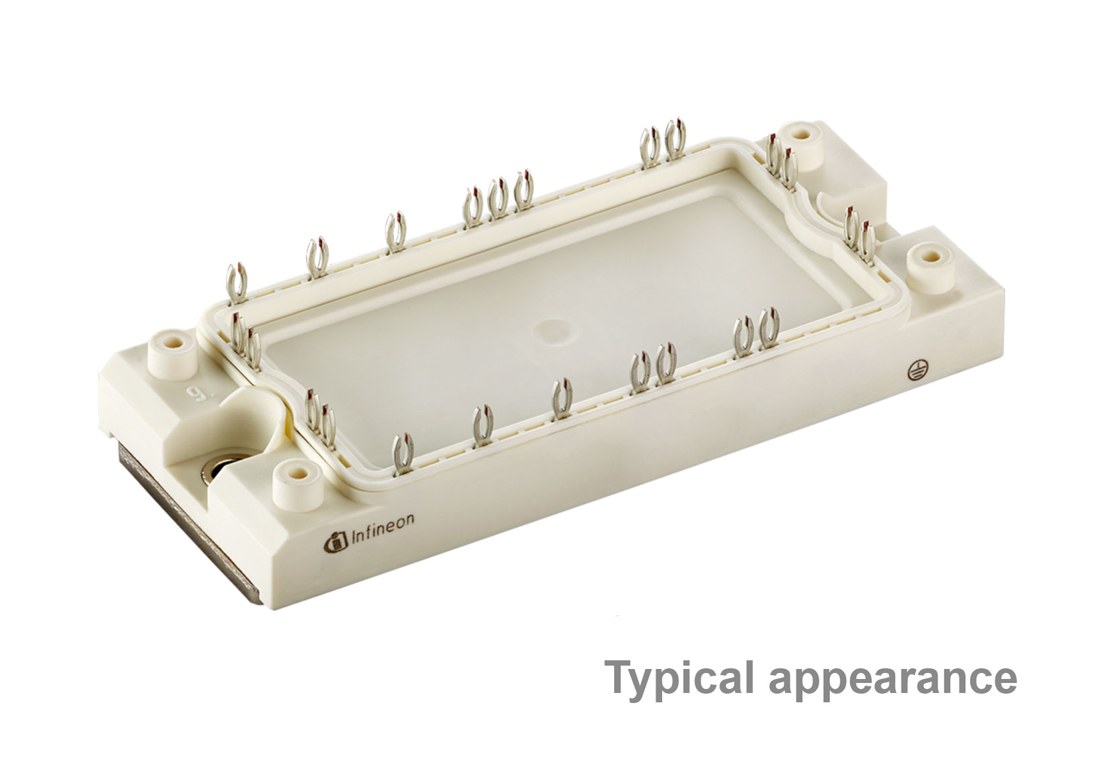

FP100R12N2T7_B11 Infineon - IGBT Module
Also written as: FP100R12N2T7-B11
FP100R12N2T7_B11 Description
FP100R12N2T7_B11 is a 1200 V / 100 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies. Typical applications: servo drives, Auxiliary inverters, Motor drives.
USComponent supplies FP100R12N2T7_B11 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Low VCEsat
- Overload operation up to 175°C
- TRENCHSTOP IGBT7
- Al2O3 substrate with low thermal resistance
- Copper base plate
- Integrated NTC temperature sensor
Target Applications
Infineon FP100R12N2T7_B11 is used for Servo drives, Auxiliary inverters, Motor drives.
Key Specifications
FP100R12N2T7_B11 is a 1200 V / 100 A PIM (rectifier + brake + inverter) IGBT module from Infineon Technologies (EconoPIM 2 package). Source: Infineon datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Product type | IGBT module |
| Configuration | PIM (rectifier + brake + inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Nominal collector current (IC nom) | 100 A |
| Package | EconoPIM 2 |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for FP100R12N2T7_B11 (reply within 24 hours)
