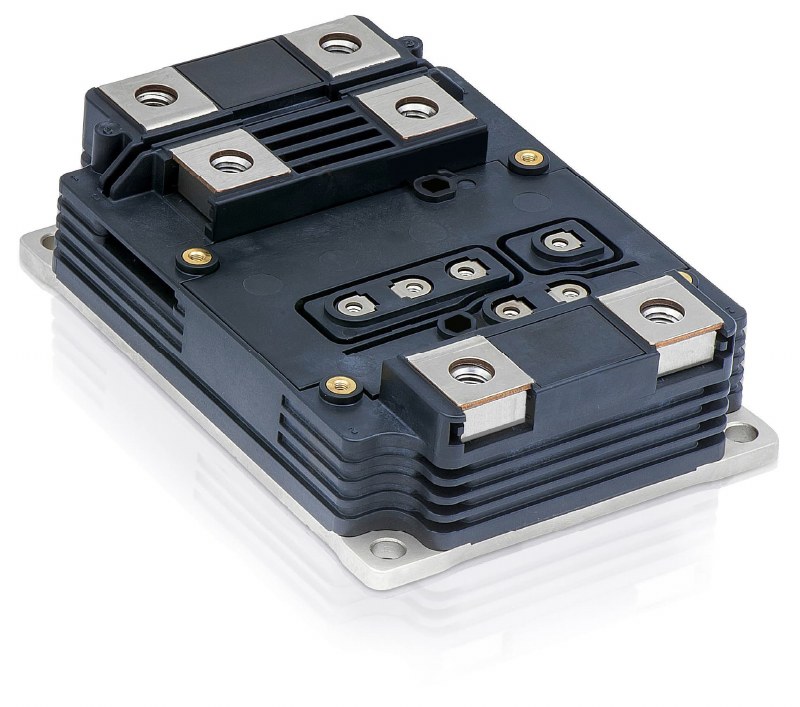

5SNG1250X170500 ABB - IGBT Module
Also written as: 5SNG1250X170500
5SNG1250X170500 Description
5SNG1250X170500 is a 1700 V / 2 x 1250 A IGBT module from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SNG1250X170500 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Ultra-low inductance phase-leg module
- Compact design with very high current density
- Paralleling without derating
- AlSiC base-plate for best power cycling
- Ultra low on-state trench chipset
Target Applications
ABB 5SNG1250X170500 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SNG1250X170500 is a 1700 V / 2 x 1250 A IGBT module from Hitachi Energy (former ABB Semiconductors) - LinPak phase leg IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | IGBT module |
| Configuration | Phase leg IGBT |
| Collector-emitter voltage (VCES) | 1700 V |
| DC collector current (IC) | 2 x 1250 A |
| Package | LinPak |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SNG1250X170500".
Technical document (PDF) | Request a quote for 5SNG1250X170500 (reply within 24 hours)
