5SNG0900R120591 ABB - IGBT Module

Also written as: 5SNG 0900R120591

Category: IGBT Modules

Specifications: 1200V, 2 x 900A

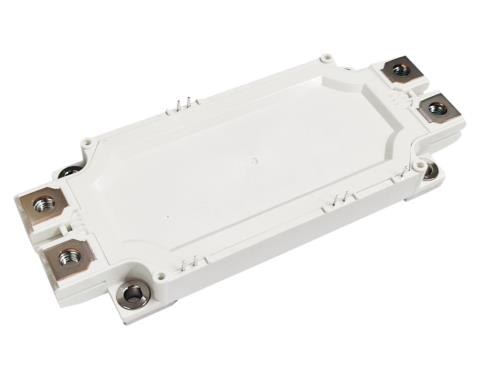

5SNG0900R120591 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNG0900R120591 Description

5SNG0900R120591 is a 1200 V / 2 x 900 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNG0900R120591 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Solder Signal pins for reliable auxiliary contacts
  • Ultra low-loss rugged Trench IGBT chipset
  • NTC thermistor for temperature sensing
  • Cu baseplate for low thermal resistance
  • Pre-Applied Thermal Interface Material (TIM) to improve thermal conductivity between module and heat sink
  • Industry standard package

Target Applications

ABB 5SNG0900R120591 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNG0900R120591 is a 1200 V / 2 x 900 A IGBT module from Hitachi Energy (former ABB Semiconductors) - LoPak phase leg IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationPhase leg IGBT
Collector-emitter voltage (VCES)1200 V
DC collector current (IC)2 x 900 A
PackageLoPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNG 0900R120591".
