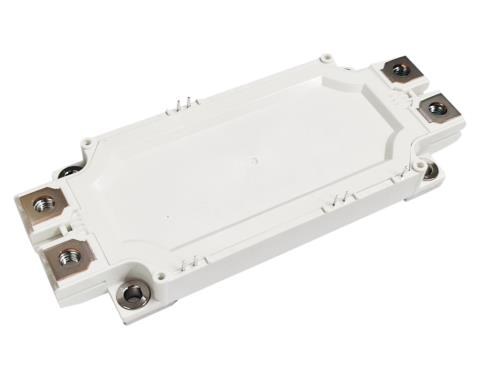

5SNG0600R120591 ABB - IGBT Module
Also written as: 5SNG 0600R120591
5SNG0600R120591 Description
5SNG0600R120591 is a 1200 V / 2 x 600 A IGBT module from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SNG0600R120591 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Press-fit pins for reliable auxiliary contacts
- Ultra low-loss rugged Trench IGBT chipset
- NTC thermistor for temperature sensing
- Cu baseplate for low thermal resistance
- Pre-Applied Thermal Interface Material (TIM) to improve thermal conductivity between module and heat sink
- Industry standard package
Target Applications
ABB 5SNG0600R120591 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SNG0600R120591 is a 1200 V / 2 x 600 A IGBT module from Hitachi Energy (former ABB Semiconductors) - LoPak phase leg IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | IGBT module |
| Configuration | Phase leg IGBT |
| Collector-emitter voltage (VCES) | 1200 V |
| DC collector current (IC) | 2 x 600 A |
| Package | LoPak |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SNG 0600R120591".
Technical document (PDF) | Request a quote for 5SNG0600R120591 (reply within 24 hours)
