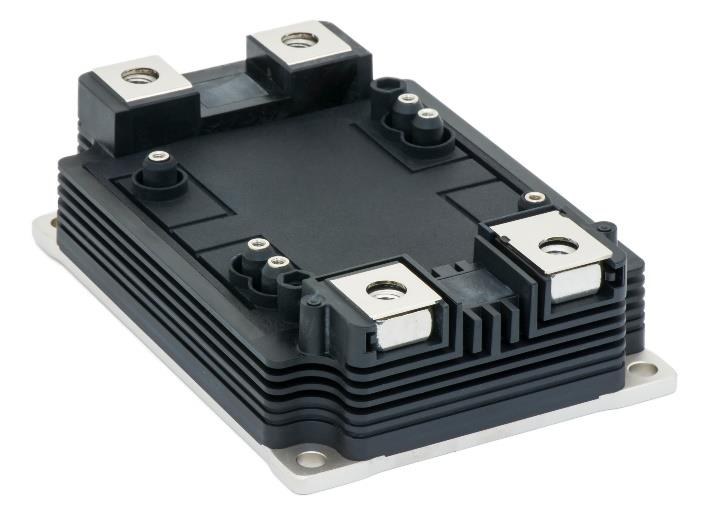

5SNG0600Z330400 ABB - IGBT Module
Also written as: 5SNG0600Z330400
5SNG0600Z330400 Description
5SNG0600Z330400 is a 3300 V / 2 x 600 A IGBT module from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SNG0600Z330400 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Ultra low inductance phase-leg module
- Compact design with very high current density
- Paralleling without derating
- AlSiC base-plate for high power cycling capability
- Ultra low on-state trench chipset
Target Applications
ABB 5SNG0600Z330400 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SNG0600Z330400 is a 3300 V / 2 x 600 A IGBT module from Hitachi Energy (former ABB Semiconductors) - LinPak phase leg IGBT module, 10.2kV insulation. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | IGBT module |
| Configuration | Phase leg IGBT |
| Collector-emitter voltage (VCES) | 3300 V |
| DC collector current (IC) | 2 x 600 A |
| Package | LinPak |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SNG0600Z330400".
Technical document (PDF) | Request a quote for 5SNG0600Z330400 (reply within 24 hours)
