5SNG0450X330300 ABB - IGBT Module

Also written as: 5SNG 0450X330300

Category: IGBT Modules

Specifications: 3300V, 2 x 450A

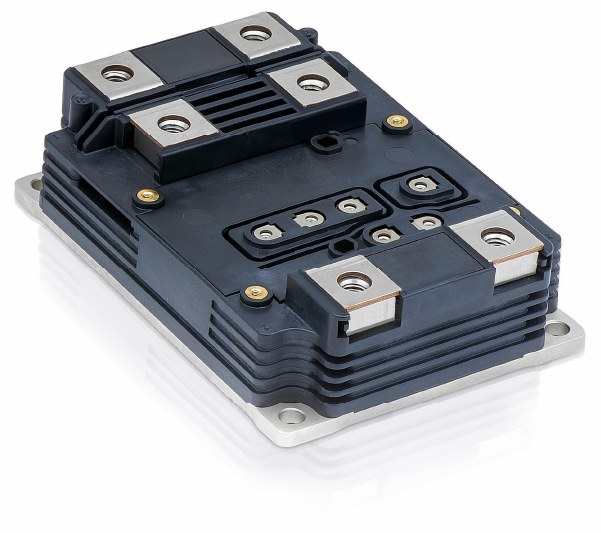

5SNG0450X330300 ABB IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNG0450X330300 Description

5SNG0450X330300 is a 3300 V / 2 x 450 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNG0450X330300 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra low inductance phase-leg module
  • Compact design with very high current density
  • Paralleling without derating
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance
  • Low-loss, fast and rugged SPT+ chip-set

Target Applications

ABB 5SNG0450X330300 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNG0450X330300 is a 3300 V / 2 x 450 A IGBT module from Hitachi Energy (former ABB Semiconductors) - LinPak phase leg IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationPhase leg IGBT
Collector-emitter voltage (VCES)3300 V
DC collector current (IC)2 x 450 A
PackageLinPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNG 0450X330300".

Technical document (PDF)  |  Request a quote for 5SNG0450X330300 (reply within 24 hours)
