5SNG0250P330305 ABB - IGBT Module

Also written as: 5SNG 0250P330305

Category: IGBT Modules

Specifications: 3300V, 2 x 250A

5SNG0250P330305 ABB IGBT Module

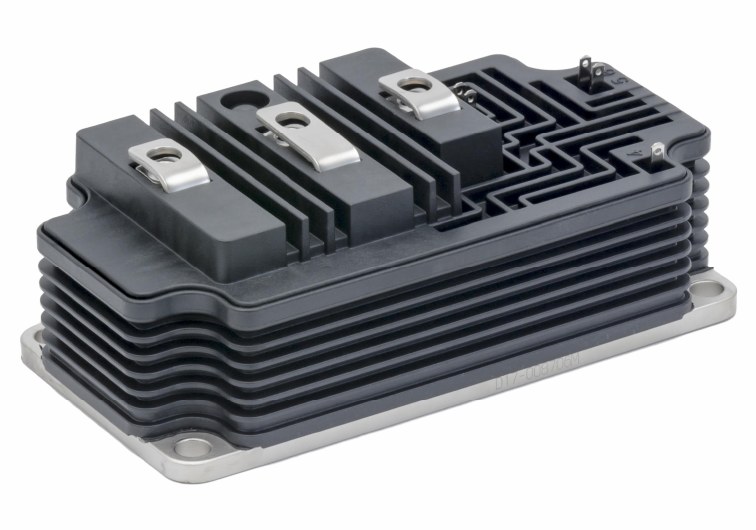

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

5SNG0250P330305 Description

5SNG0250P330305 is a 3300 V / 2 x 250 A IGBT module from Hitachi Energy (former ABB Semiconductors).

USComponent supplies 5SNG0250P330305 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Ultra low-loss, rugged SPT+ chip-set
  • Smooth switching SPT+ chip-set for good EMC
  • AlSiC base-plate for high power cycling capability
  • AlN substrate for low thermal resistance

Target Applications

ABB 5SNG0250P330305 finds applications in various industries and systems where high power switching is required.

Key Specifications

5SNG0250P330305 is a 3300 V / 2 x 250 A IGBT module from Hitachi Energy (former ABB Semiconductors) - HiPak IGBT Module. Source: Hitachi Energy (ABB) datasheet and product table.

ParameterValue
ManufacturerHitachi Energy (former ABB Semiconductors)
Product typeIGBT module
ConfigurationPhase leg IGBT
Collector-emitter voltage (VCES)3300 V
DC collector current (IC)2 x 250 A
PackageHiPak
DatasheetAvailable on this page (PDF)

Note: Hitachi Energy writes this part number as "5SNG 0250P330305".

Technical document (PDF)  |  Request a quote for 5SNG0250P330305 (reply within 24 hours)
