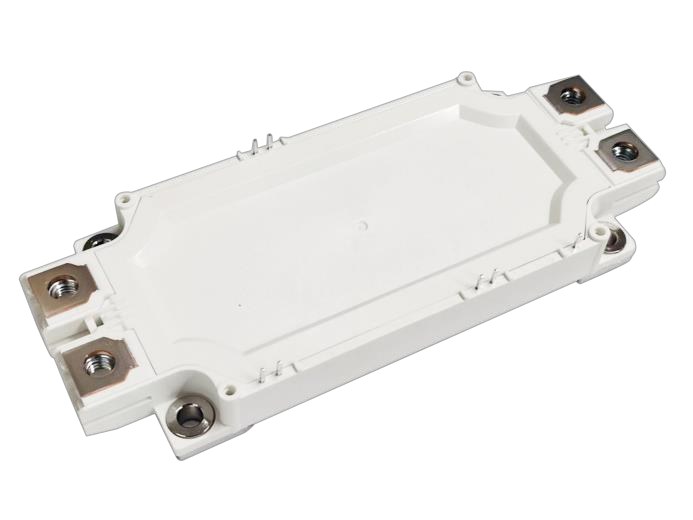

5SNG0750R170501 ABB - IGBT Module
Also written as: 5SNG 0750R170501
5SNG0750R170501 Description
5SNG0750R170501 is a 1700 V / 2 x 750 A IGBT module from Hitachi Energy (former ABB Semiconductors).
USComponent supplies 5SNG0750R170501 and other ABB / Hitachi Energy power semiconductors. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Solder Signal pins for reliable auxiliary contacts
- Ultra low-loss, rugged Trench chip-set
- NTC thermistor for temperature sensing
- Cu baseplate for low thermal resistance
- Industry standard package
Target Applications
ABB 5SNG0750R170501 finds applications in various industries and systems where high power switching is required.
Key Specifications
5SNG0750R170501 is a 1700 V / 2 x 750 A IGBT module from Hitachi Energy (former ABB Semiconductors) - LoPak phase leg IGBT module. Source: Hitachi Energy (ABB) datasheet and product table.
| Parameter | Value |
|---|---|
| Manufacturer | Hitachi Energy (former ABB Semiconductors) |
| Product type | IGBT module |
| Configuration | Phase leg IGBT |
| Collector-emitter voltage (VCES) | 1700 V |
| DC collector current (IC) | 2 x 750 A |
| Package | LoPak |
| Datasheet | Available on this page (PDF) |
Note: Hitachi Energy writes this part number as "5SNG 0750R170501".
Technical document (PDF) | Request a quote for 5SNG0750R170501 (reply within 24 hours)
