SEMIX202GB066HDS Semikron - IGBT Module

SEMIX202GB066HDS Description

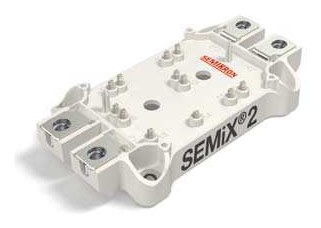

SEMIX202GB066HDS is a Trench IGBT module, SEMiX 2s, half bridge (2 IGBTs) from Semikron, rated 600V, 240A. Typical applications: Matrix converter, resonant inverter and current source inverter.

USComponent supplies SEMIX202GB066HDS and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX202GB066HDs-M04 / -M06 (pre-applied TIM: HALA P8 / HALA HT).

Summary of Features

Target Applications

Semikron SEMIX202GB066HDS is used for Matrix converter, resonant inverter and current source inverter.

Key Specifications

SEMIX202GB066HDS is a Trench IGBT module, SEMiX 2s, half bridge (2 IGBTs) from Semikron, rated 600V, 240A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Semikron
Collector-emitter voltage VCES	600 V
IC (Tc = 25 / 80 °C)	240 / 170 A
ICRM (1 ms)	400 A
VCE(sat) typ. / max. (ICnom = 200 A, 25 °C)	1.45 V / 1.9 V
Isolation voltage Visol	4000 V (AC, 1 min)
Configuration	half bridge (2 IGBTs)
Package	SEMiX 2s
Datasheet	Available on this page (PDF)

Note: Datasheet marked Target Data.

Technical document (PDF)  |  Request a quote for SEMIX202GB066HDS (reply within 24 hours)
