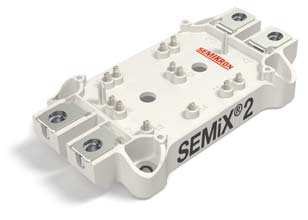

SEMiX302GB176HDs Semikron - IGBT Module

SEMiX302GB176HDs Description

SEMiX302GB176HDs is a 1700 V / 200 A half-bridge IGBT module from Semikron Danfoss (SEMiX 2s package). Typical applications: AC inverter drives, Electronic welders.

USComponent supplies SEMiX302GB176HDs and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX302GB176HDs-M04 / -M06 (pre-applied TIM: HALA P8 / HALA HT).

Summary of Features

Target Applications

Semikron SEMiX302GB176HDs is used for AC inverter drives, Electronic welders.

Key Specifications

SEMiX302GB176HDs is a 1700 V / 200 A half-bridge IGBT module from Semikron Danfoss (SEMiX 2s package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMiX
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1700 V
Nominal collector current (IC nom)	200 A
Chip technology	IGBT 3 (Trench)
Package	SEMiX 2s
Supply status (Semikron)	Discontinued
Datasheet	Available on this page (PDF)

Status: Semikron Danfoss lists SEMiX302GB176HDs as discontinued. USComponent can still source SEMiX302GB176HDs and help you find a suitable alternative.
