SEMiX205GD12M7HD Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 200A

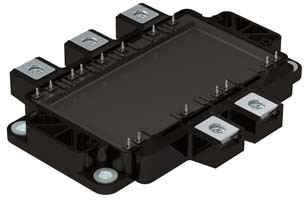

SEMiX205GD12M7HD Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SEMiX205GD12M7HD Description

SEMiX205GD12M7HD is a 1200 V / 200 A six-pack IGBT module from Semikron Danfoss (SEMiX 5p package). Typical applications: AC inverter drives, Renewable energy systems.

USComponent supplies SEMiX205GD12M7HD and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX205GD12M7HD-M07 (pre-applied TIM: HP-PCM).

Summary of Features

  • Solderless assembly solution with pressFit signal pins and screw power terminals
  • VCE(sat) with positive temperature coefficient
  • High overload capability
  • High short circuit capability
  • Low loss high density IGBTs
  • UL recognized, file no. E63532
  • NTC temperature sensor inside

Target Applications

Semikron SEMiX205GD12M7HD is used for AC inverter drives, Renewable energy systems.

Key Specifications

SEMiX205GD12M7HD is a 1200 V / 200 A six-pack IGBT module from Semikron Danfoss (SEMiX 5p package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationSix-pack
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)200 A
Chip technologyIGBT M7
PackageSEMiX 5p
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SEMiX205GD12M7HD (reply within 24 hours)
