SEMIX452GB126HDS Semikron - IGBT Module

SEMIX452GB126HDS Description

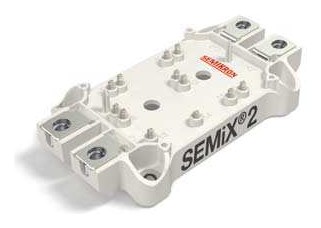

SEMIX452GB126HDS is a Trench IGBT module, SEMiX 2s, half bridge (2 IGBTs) from Semikron, rated 1200V, 470A. Typical applications: AC inverter drives, UPS and electronic welders.

USComponent supplies SEMIX452GB126HDS and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SEMIX452GB126HDS is used for AC inverter drives, UPS and electronic welders.

Key Specifications

SEMIX452GB126HDS is a Trench IGBT module, SEMiX 2s, half bridge (2 IGBTs) from Semikron, rated 1200V, 470A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Semikron
Collector-emitter voltage VCES	1200 V
IC (Tc = 25 / 80 °C)	470 / 330 A
ICRM (1 ms)	600 A
VCE(sat) typ. / max. (ICnom = 300 A, 25 °C)	1.7 V / 2.15 V
Isolation voltage Visol	4000 V (AC, 1 min)
Configuration	half bridge (2 IGBTs)
Package	SEMiX 2s
Datasheet	Available on this page (PDF)

Note: Datasheet marked Preliminary Data.
