TM90RZ-H Mitsubishi - Thyristor / Diode Module

TM90RZ-H Description

Mitsubishi Electric makes the TM90RZ-H, a thyristor module. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.

We help engineers and repair technicians find parts like the TM90RZ-H, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Summary of Features

Target Applications

Mitsubishi TM90RZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM90RZ-H is a 90 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	90 A

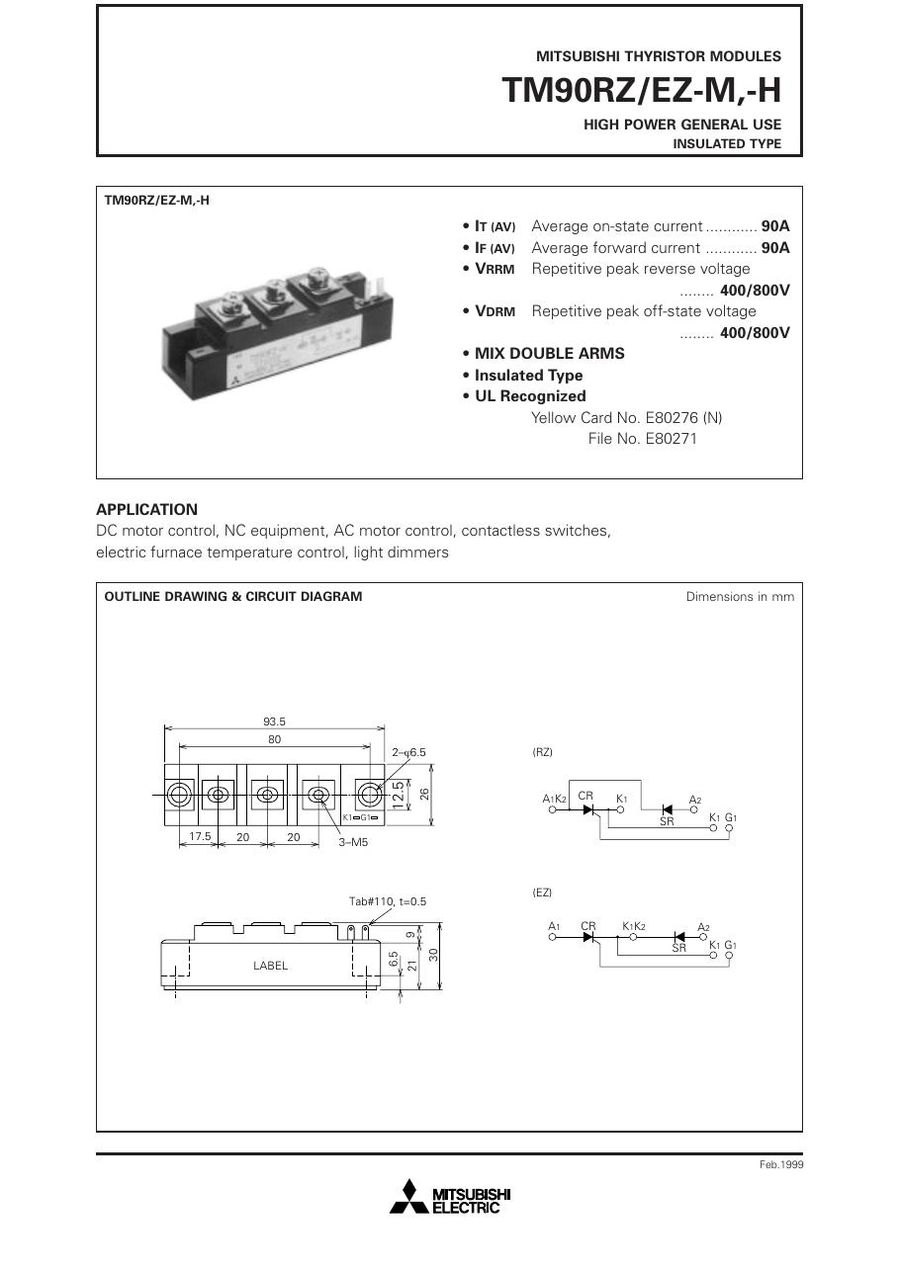

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM90RZ-H (reply within 24 hours)
