TM90EZ-2HMitsubishi - Thyristor Module

TM90EZ-2H Description

Mitsubishi Electric TM90EZ-2H is a thyristor module rated at 1600 V and 90 A. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM90EZ-2H.

Summary of Features

Target Applications

Mitsubishi TM90EZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM90EZ-2H is a 90 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	90 A
Datasheet	Available on this page (PDF)

Download TM90EZ-2H Datasheet

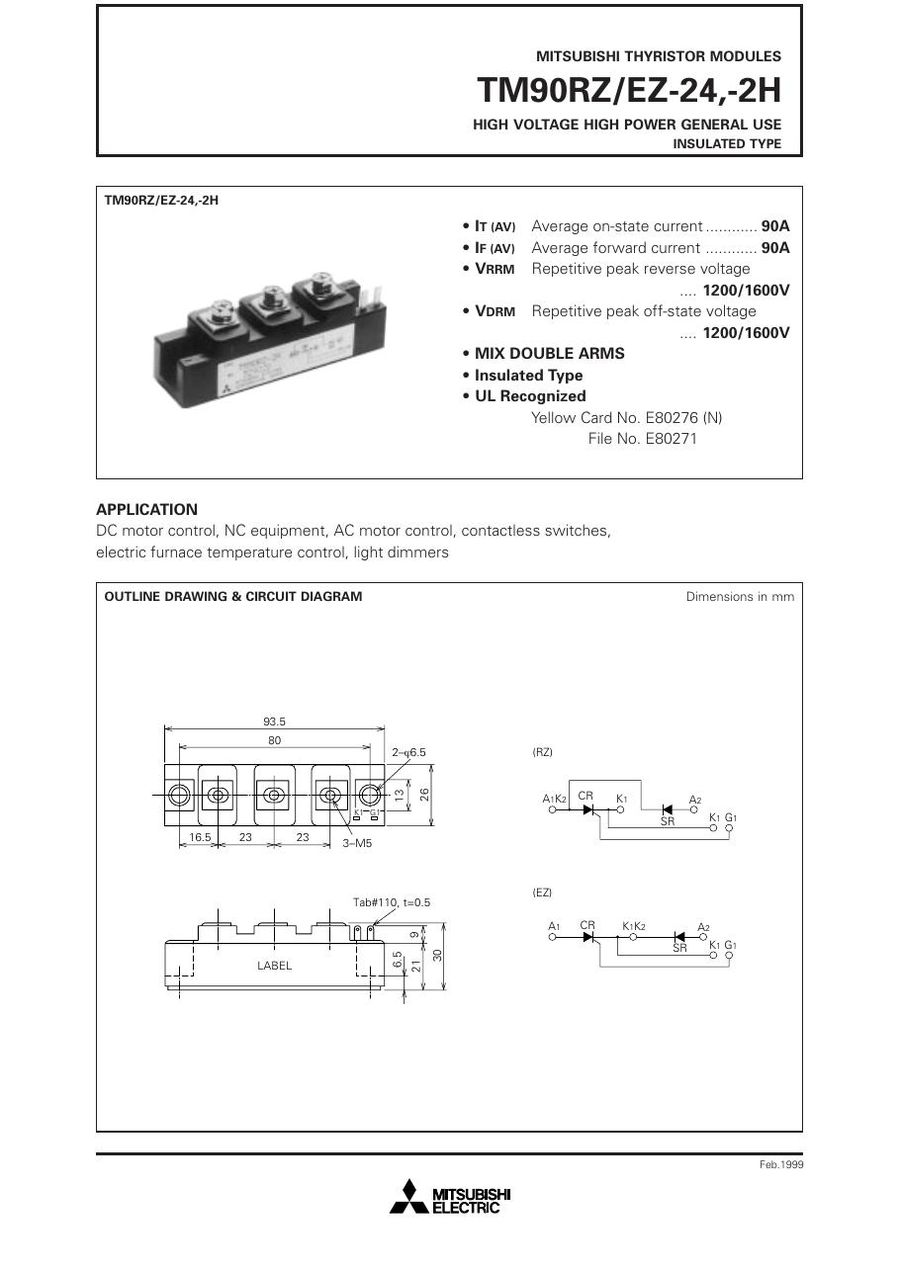

TM90EZ-2H PDF Datasheet
