TM90DZ-HMitsubishi - Thyristor Module

TM90DZ-H Description

The Mitsubishi Electric TM90DZ-H is a thyristor module rated at 600 V and 90 A, available from USComponent. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM90DZ-H.

Target Applications

Mitsubishi TM90DZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor Module
Rated voltage	600 V
Rated current	90 A

Download TM90DZ-H Datasheet

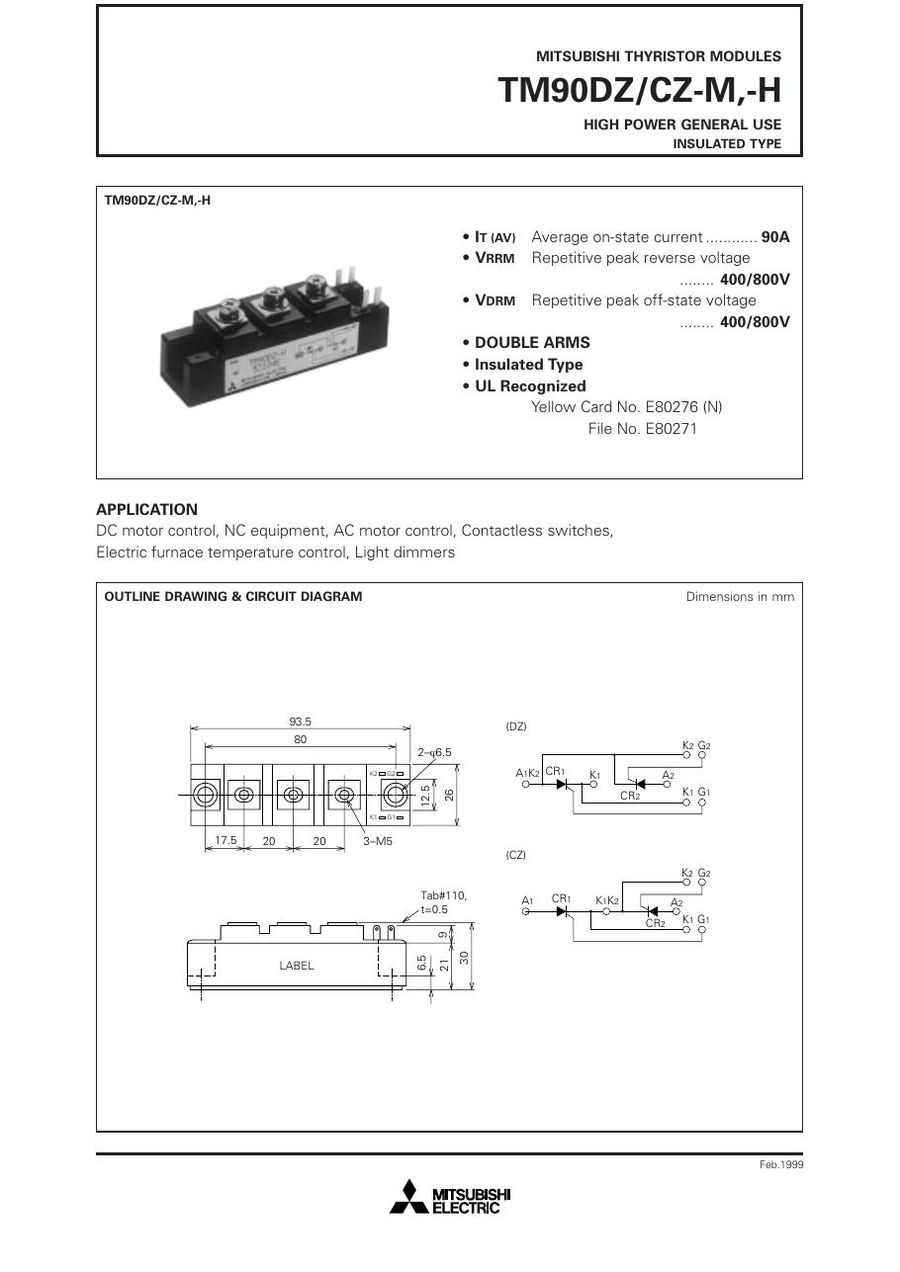

TM90DZ-H PDF Datasheet
