TM55RZ-HMitsubishi - Thyristor Module

TM55RZ-H Description

The Mitsubishi Electric TM55RZ-H is a thyristor module rated at 800 V and 55 A, available from USComponent. Components of this type are commonly used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM55RZ-H.

Target Applications

Mitsubishi TM55RZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor Module
Rated voltage	800 V
Rated current	55 A

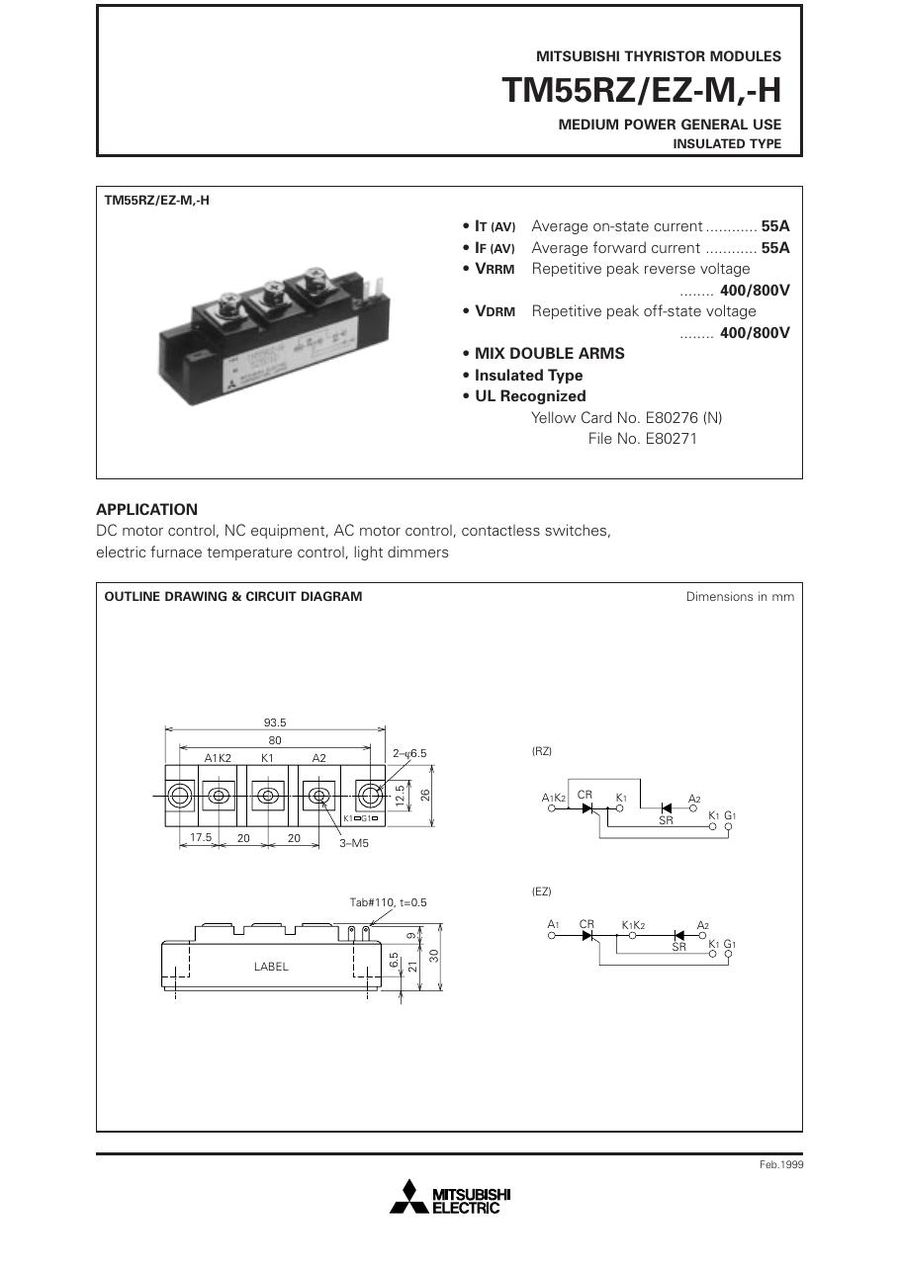

Download TM55RZ-H Datasheet

TM55RZ-H PDF Datasheet
