TM130DZ-H Mitsubishi - Thyristor / Diode Module

TM130DZ-H Description

Mitsubishi Electric TM130DZ-H is a thyristor module rated at 800 V and 130 A. It is used in phase-controlled rectifiers, soft starters, battery chargers and temperature controllers for furnaces and heaters. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the TM130DZ-H, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi TM130DZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130DZ-H is a 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	130 A

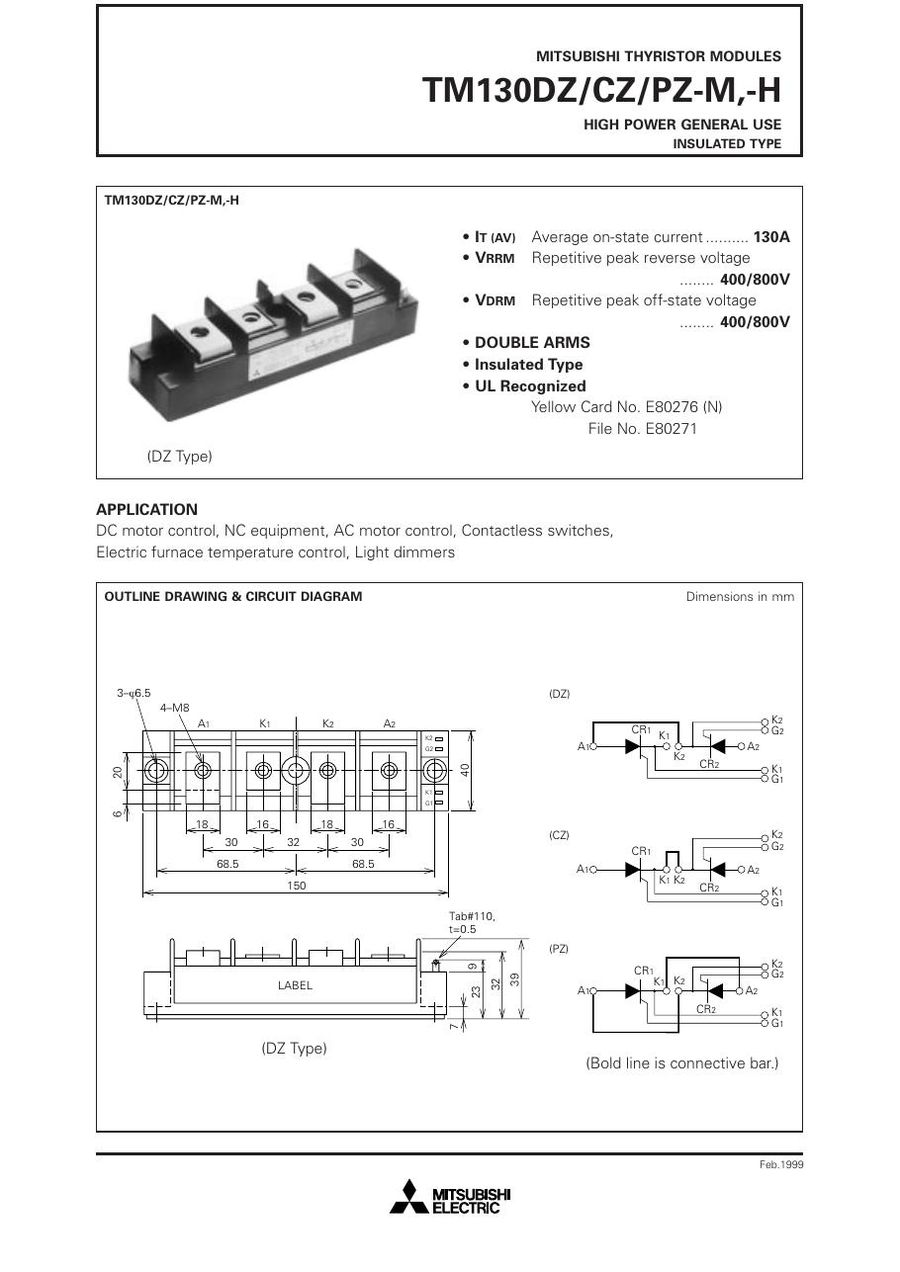

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM130DZ-H (reply within 24 hours)
