TM130EZ-HMitsubishi - Thyristor Module

TM130EZ-H Description

The Mitsubishi Electric TM130EZ-H is a thyristor module rated at 800 V and 130 A, available from USComponent. This type of device is widely used in soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM130EZ-H.

Summary of Features

Target Applications

Mitsubishi TM130EZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130EZ-H is a 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	130 A
Datasheet	Available on this page (PDF)

Download TM130EZ-H Datasheet

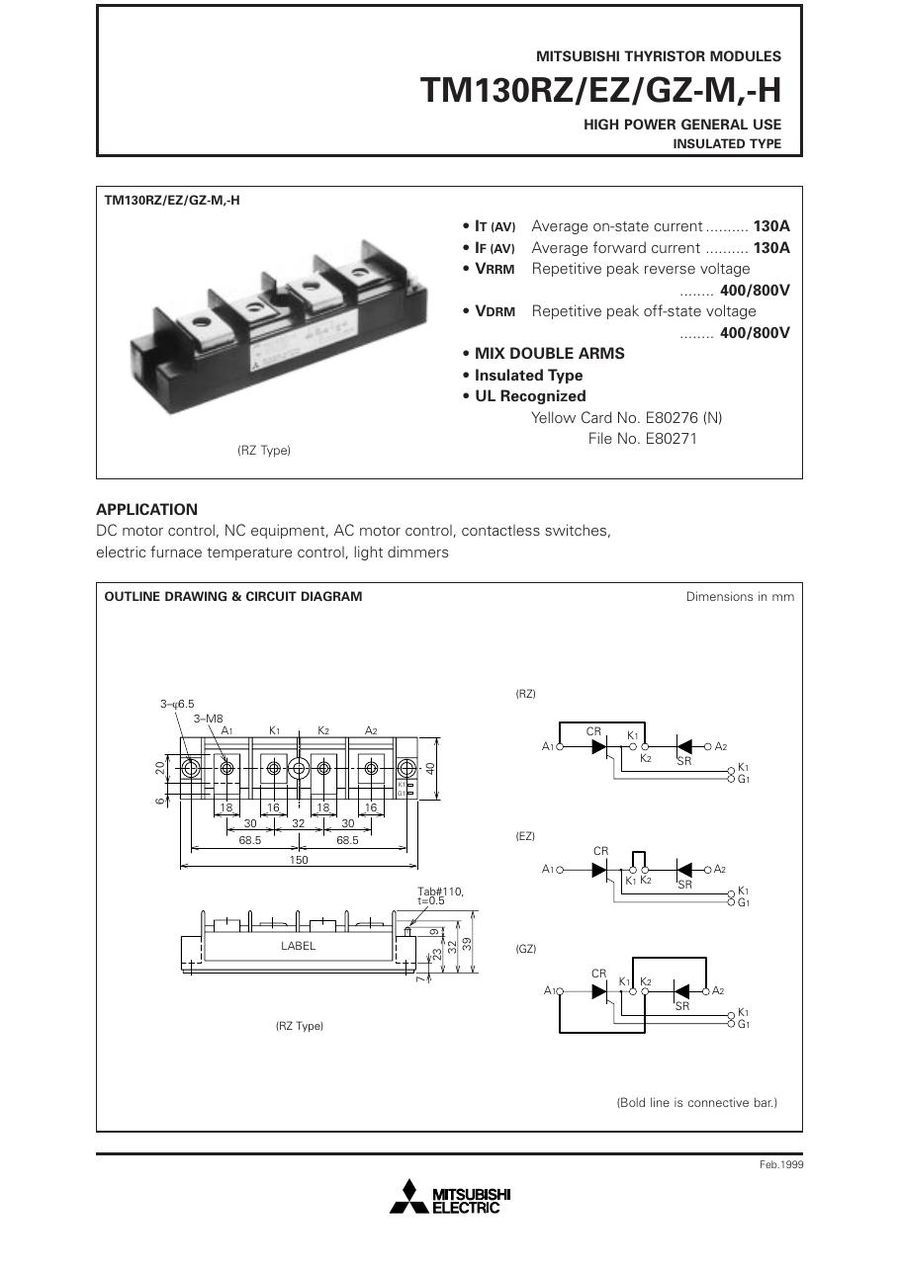

TM130EZ-H PDF Datasheet
