TM200PZ-24 Mitsubishi - Thyristor / Diode Module

TM200PZ-24 Description

Rated at 1200 V and 200 A, the Mitsubishi Electric TM200PZ-24 is a thyristor module. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the TM200PZ-24 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi TM200PZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM200PZ-24 is a 1,200 V, 200 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	200 A

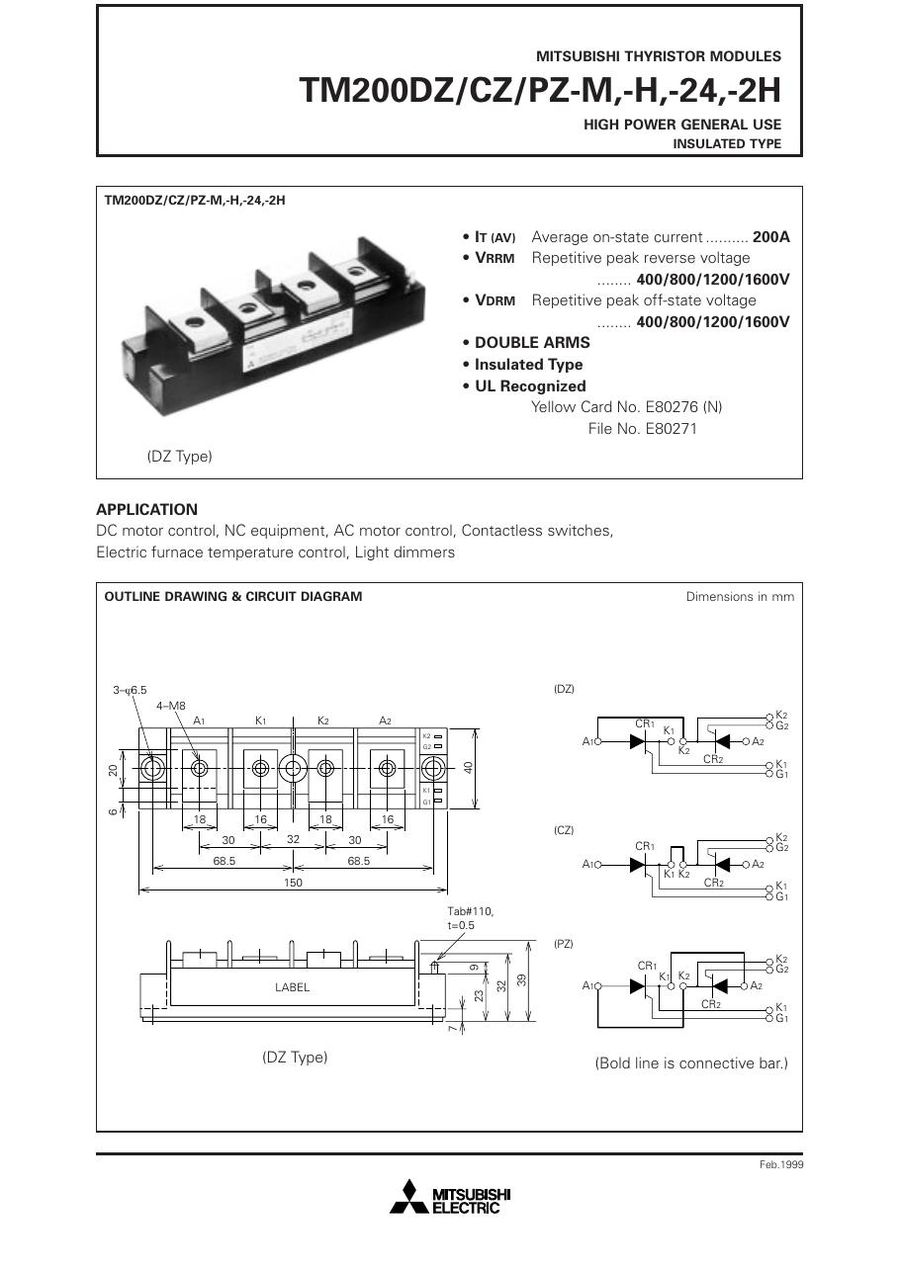

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM200PZ-24 (reply within 24 hours)
