TM130EZ-24 Mitsubishi - Thyristor / Diode Module

TM130EZ-24 Description

The TM130EZ-24 from Mitsubishi Electric is a thyristor module. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the TM130EZ-24, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi TM130EZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130EZ-24 is a 1,200 V, 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	130 A

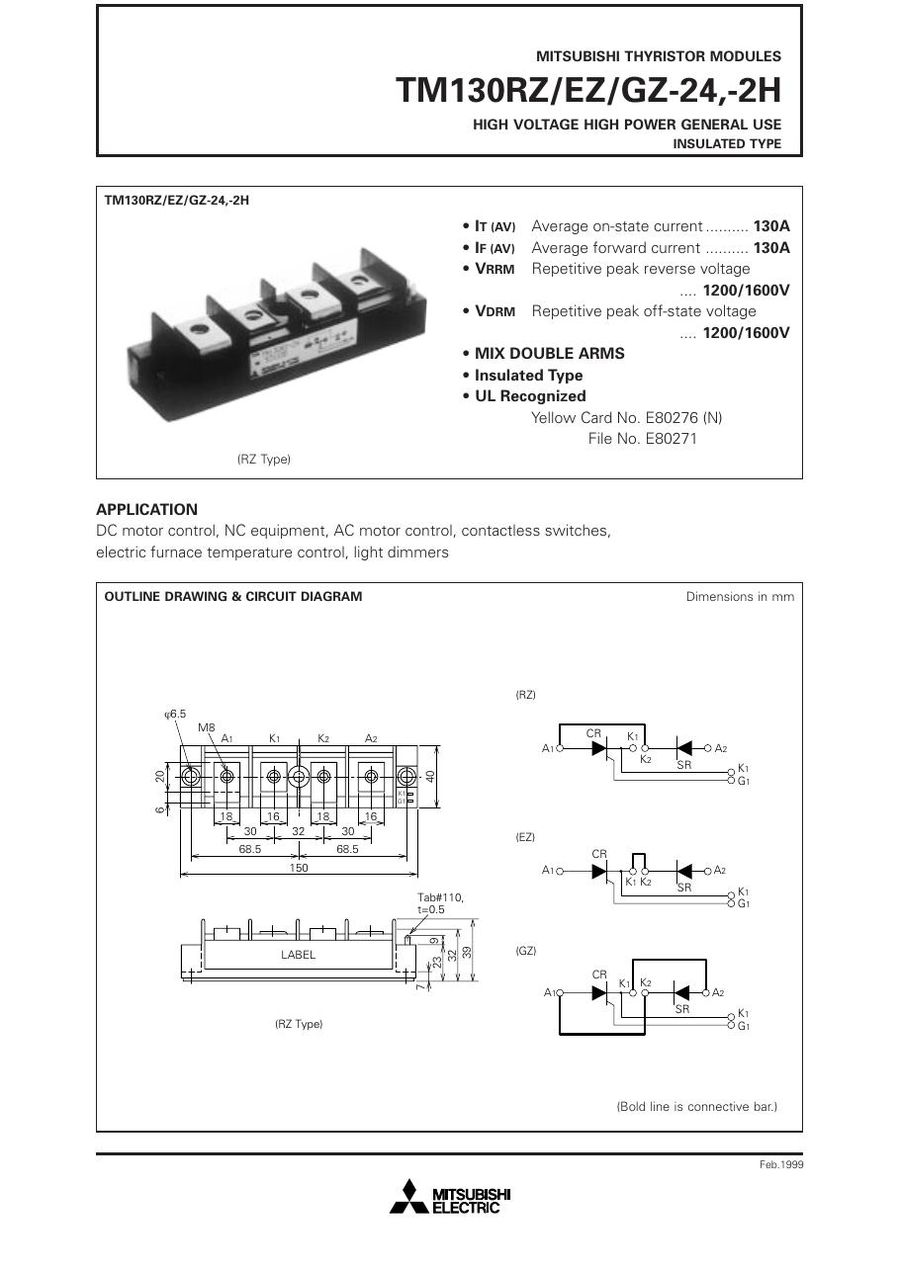

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM130EZ-24 (reply within 24 hours)
