TM55EZ-H Mitsubishi - Thyristor / Diode Module

TM55EZ-H Description

TM55EZ-H is an 800 V, 55 A thyristor module made by Mitsubishi Electric. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the TM55EZ-H, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi TM55EZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM55EZ-H is a 55 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Rated on-state current	55 A

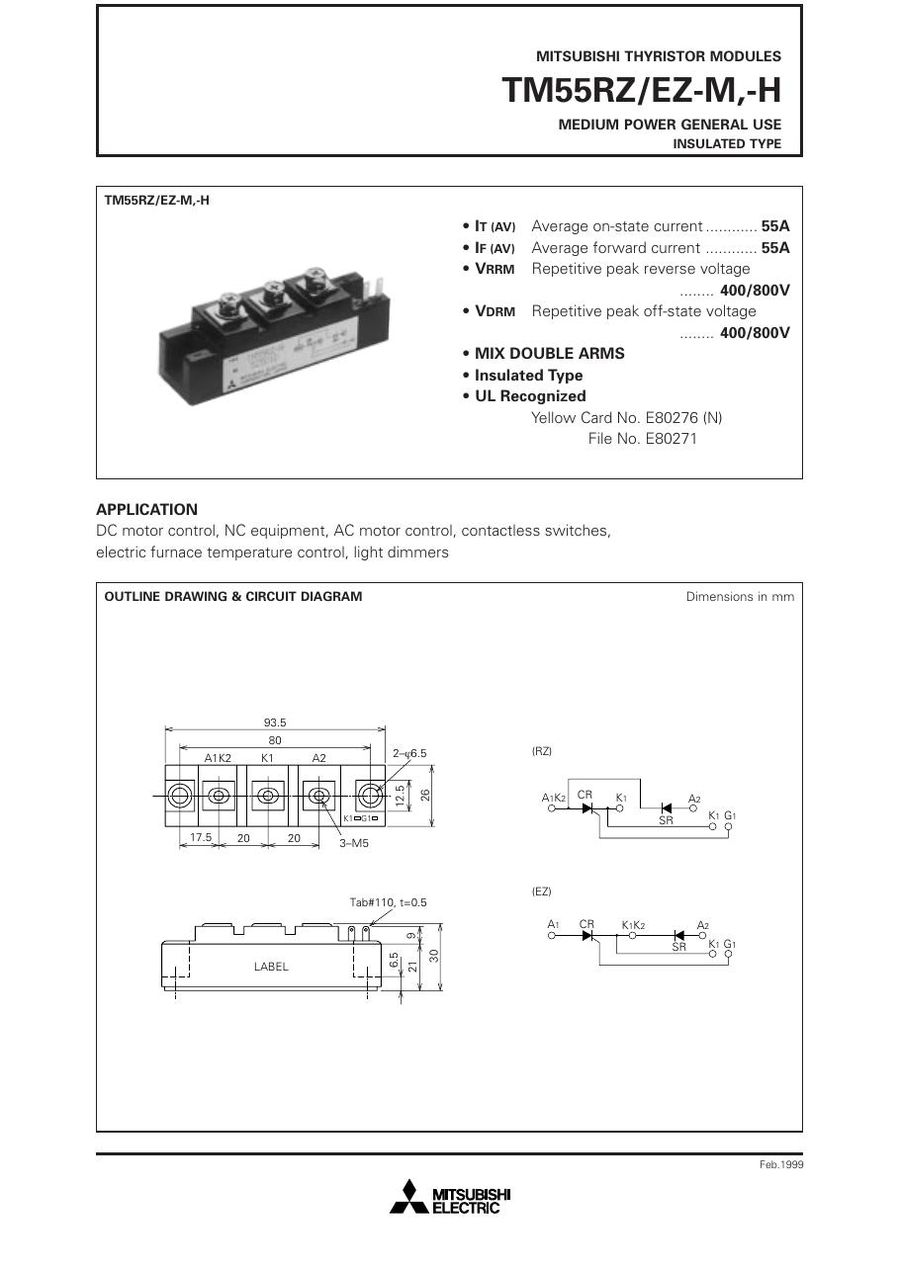

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM55EZ-H (reply within 24 hours)
