TM25EZ-24 Mitsubishi - Thyristor / Diode Module

TM25EZ-24 Description

The TM25EZ-24 from Mitsubishi Electric is a thyristor module. You'll find thyristors like this in soft starters, static switches, DC motor controllers and heater controls.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the TM25EZ-24, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi TM25EZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM25EZ-24 is a 1,200 V, 25 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	25 A

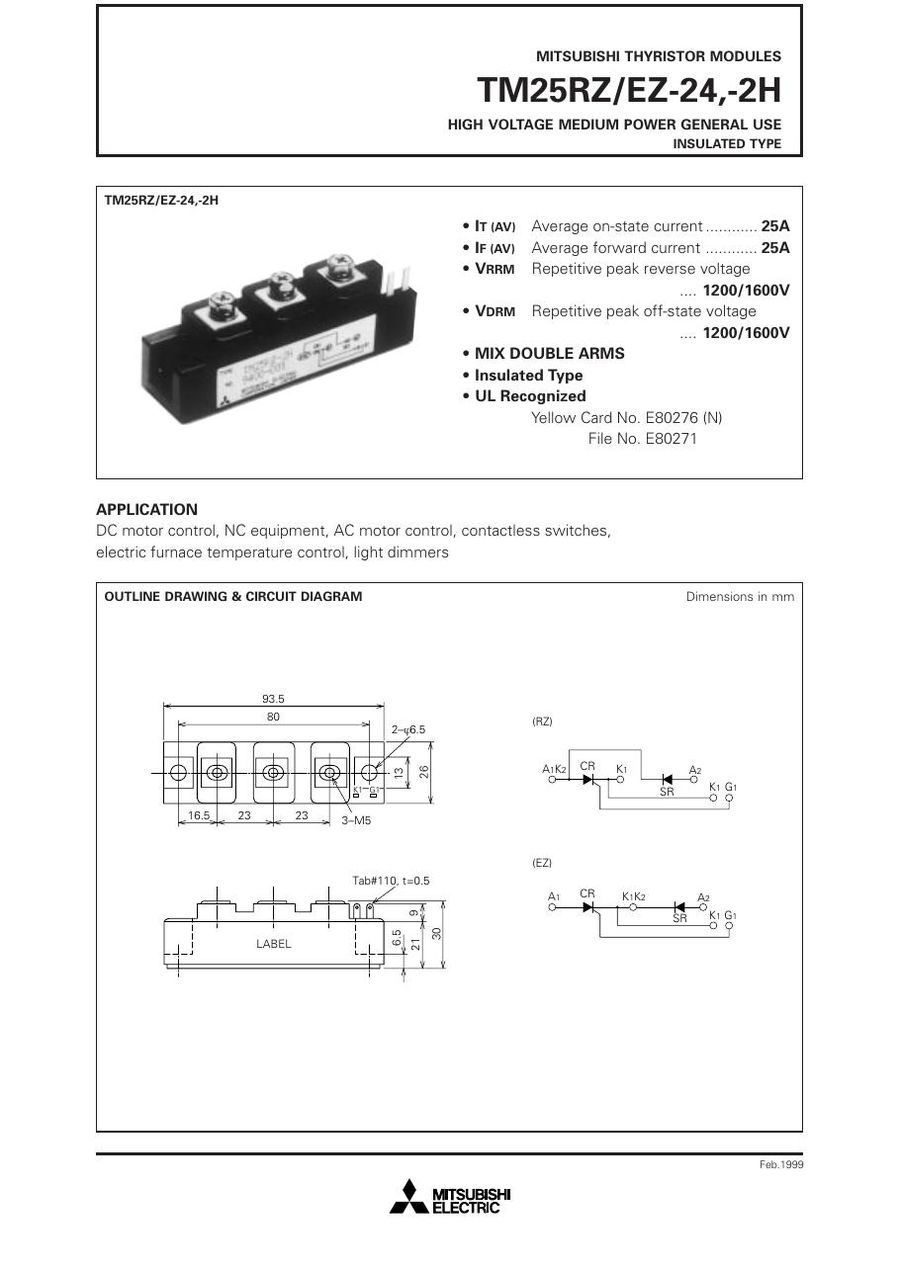

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM25EZ-24 (reply within 24 hours)
