TM130DZ-24Mitsubishi - Thyristor / Diode Module

TM130DZ-24 Description

The Mitsubishi Electric TM130DZ-24 is a thyristor module rated at 1200 V and 130 A, available from USComponent. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM130DZ-24.

Summary of Features

Target Applications

Mitsubishi TM130DZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM130DZ-24 is a 1,200 V, 130 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	130 A
Datasheet	Available on this page (PDF)

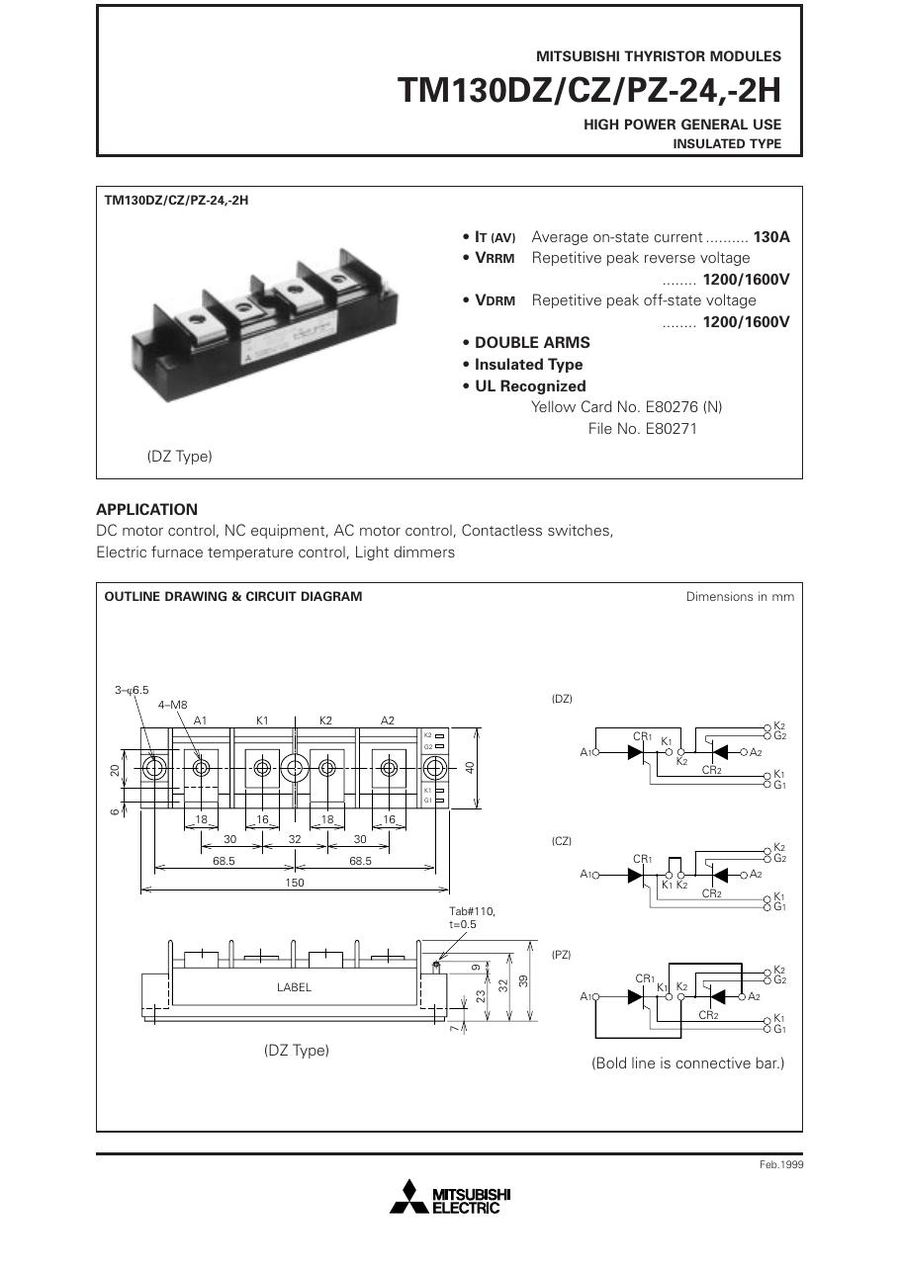

Download TM130DZ-24 Datasheet

TM130DZ-24 PDF Datasheet
