TM25DZ-24Mitsubishi - Thyristor Module

TM25DZ-24 Description

Mitsubishi Electric TM25DZ-24 is a thyristor module rated at 1200 V and 25 A. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM25DZ-24.

Summary of Features

Target Applications

Mitsubishi TM25DZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM25DZ-24 is a 1,200 V, 25 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	25 A
Datasheet	Available on this page (PDF)

Download TM25DZ-24 Datasheet

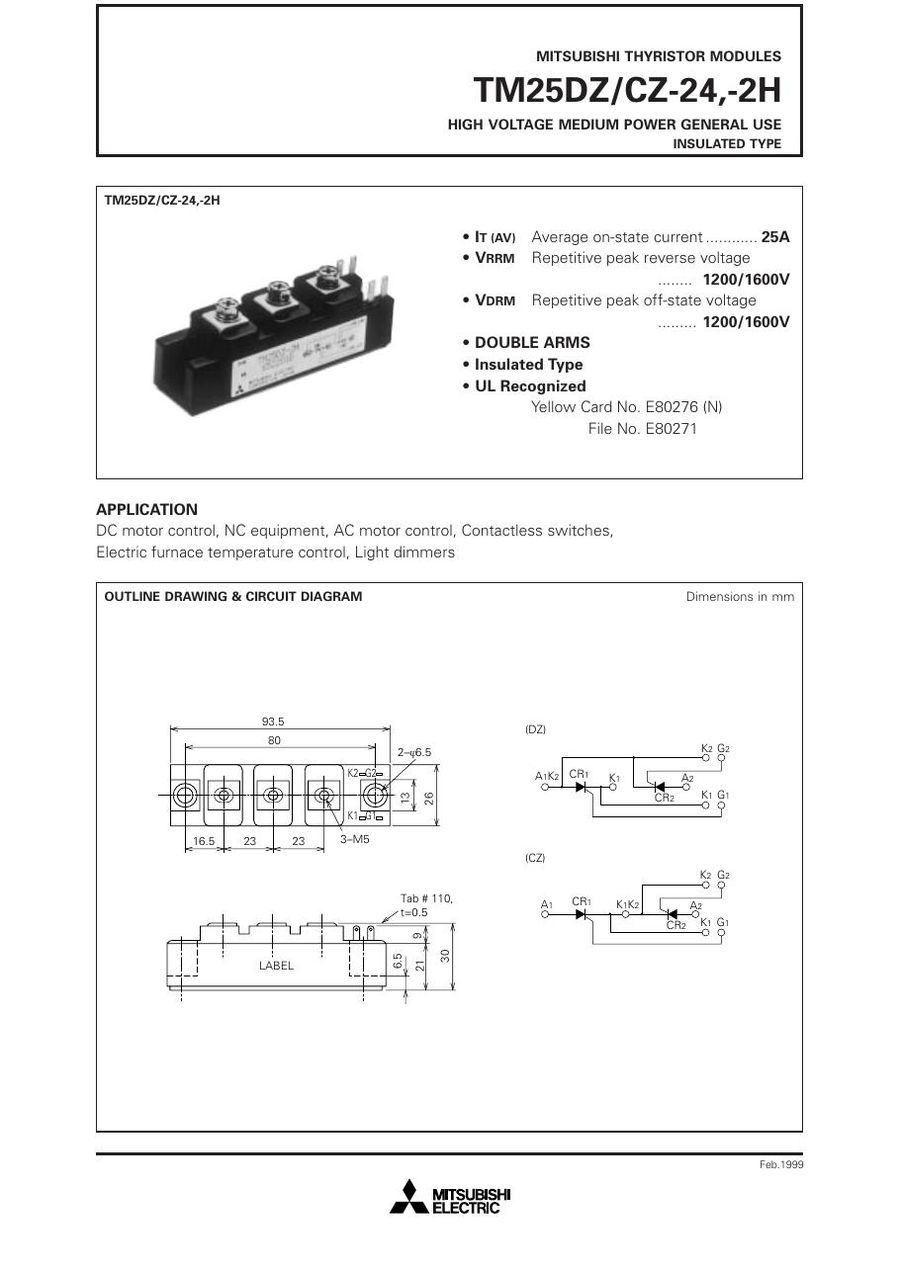

TM25DZ-24 PDF Datasheet
