TM200DZ-24 Mitsubishi - Thyristor / Diode Module

TM200DZ-24 Description

The Mitsubishi Electric TM200DZ-24 is a thyristor module, rated for 200 A. Common uses are AC switches, soft starters, DC drives and controlled rectifiers in industrial power equipment. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the TM200DZ-24, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi TM200DZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TM200DZ-24 is a 1,200 V, 200 A thyristor module. Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module
Repetitive peak voltage (VDRM / VRRM)	1,200 V
Rated on-state current	200 A

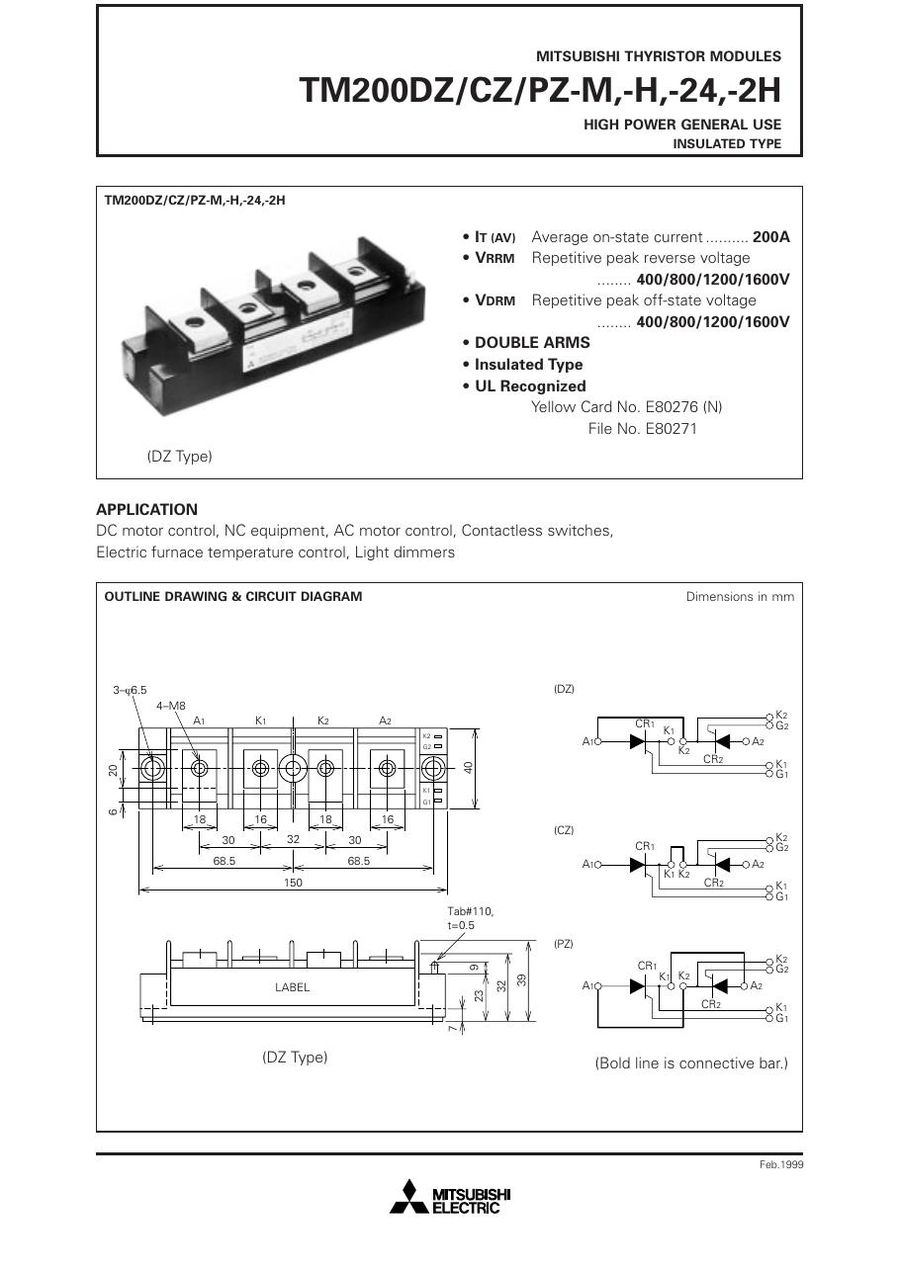

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TM200DZ-24 (reply within 24 hours)
