TM200DZ-2HMitsubishi - Thyristor / Diode Module

TM200DZ-2H Description

The Mitsubishi Electric TM200DZ-2H is a thyristor module rated at 1600 V and 200 A, available from USComponent. THYRISTOR MODULES HIGH POWER GENERAL USE INSULATED TYPE. Typical applications for this type of device include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the TM200DZ-2H.

Target Applications

Mitsubishi TM200DZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Thyristor / Diode Module
Rated voltage	1600 V
Rated current	200 A

Download TM200DZ-2H Datasheet

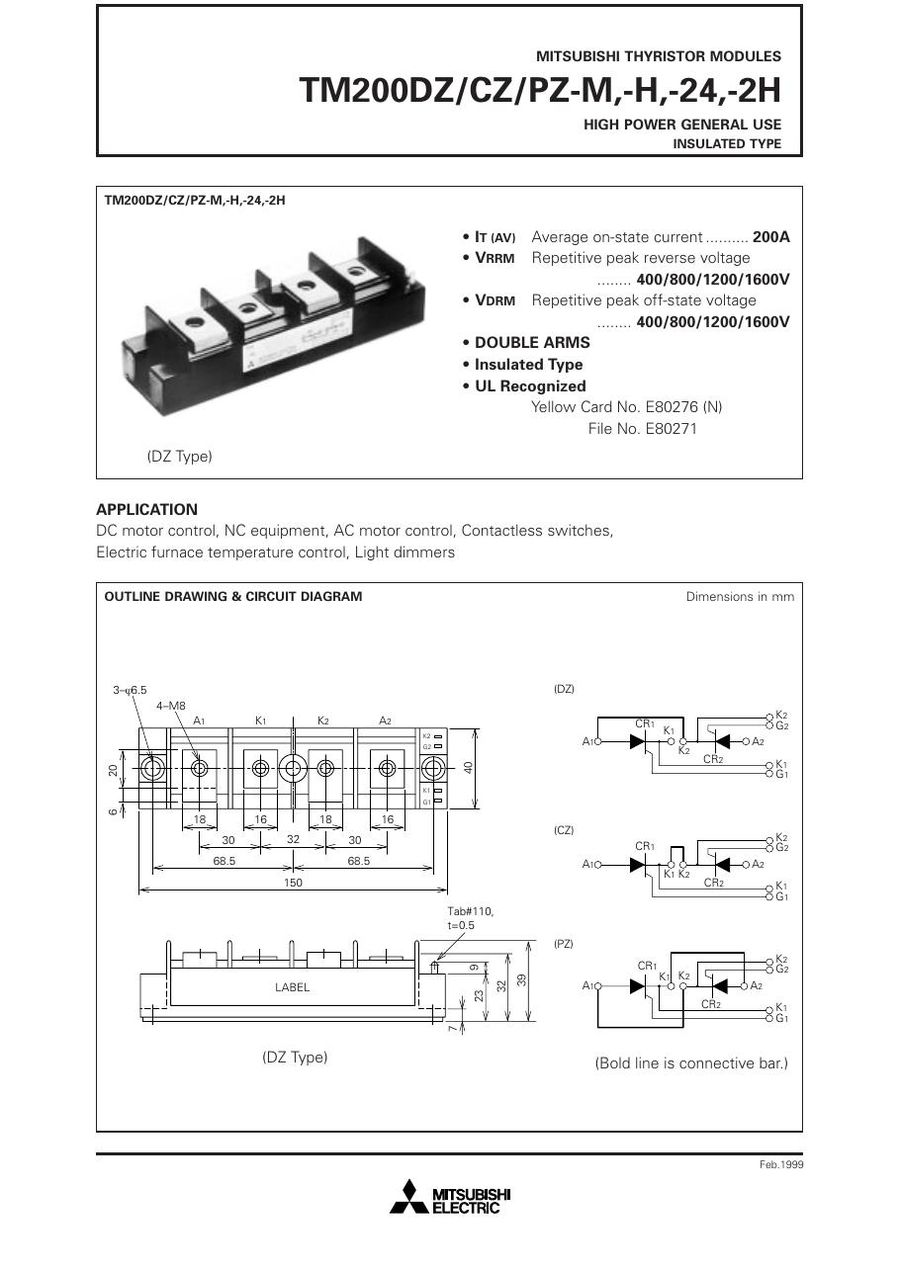

TM200DZ-2H PDF Datasheet
