RM500UZ-2H Mitsubishi - Diode Module

RM500UZ-2H Description

The Mitsubishi Electric RM500UZ-2H is a diode module, rated for 1600 V and 500 A. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the RM500UZ-2H, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Mitsubishi RM500UZ-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM500UZ-2H is a 500 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	500 A

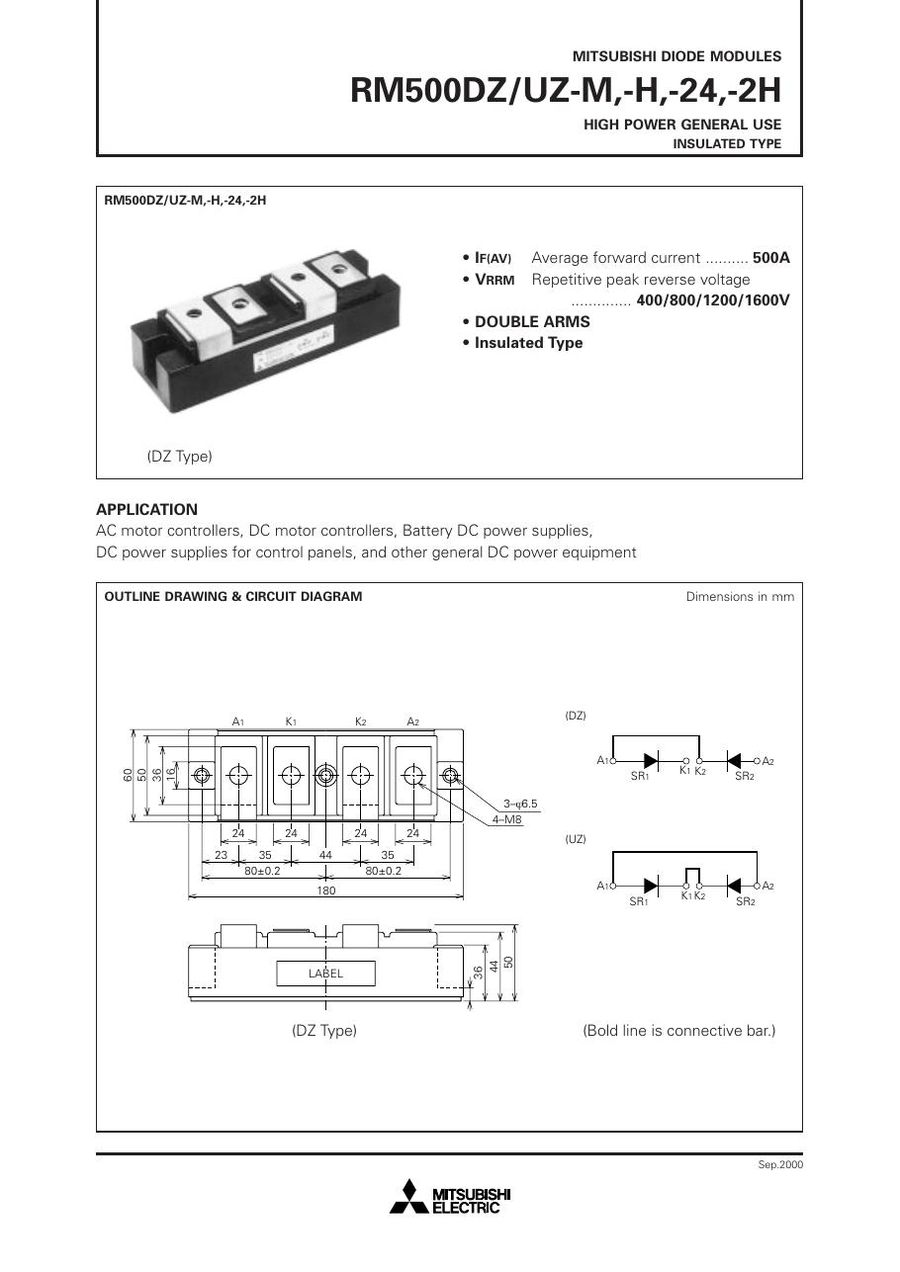

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM500UZ-2H (reply within 24 hours)
