RM500HA-2H Mitsubishi - Diode Module

RM500HA-2H Description

Mitsubishi Electric makes the RM500HA-2H, a 1600 V, 500 A diode module. Typical applications include AC-to-DC rectification in drives and power supplies, freewheeling paths and battery charging. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

Looking for a replacement RM500HA-2H? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Summary of Features

Target Applications

Mitsubishi RM500HA-2H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM500HA-2H is a 500 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	500 A

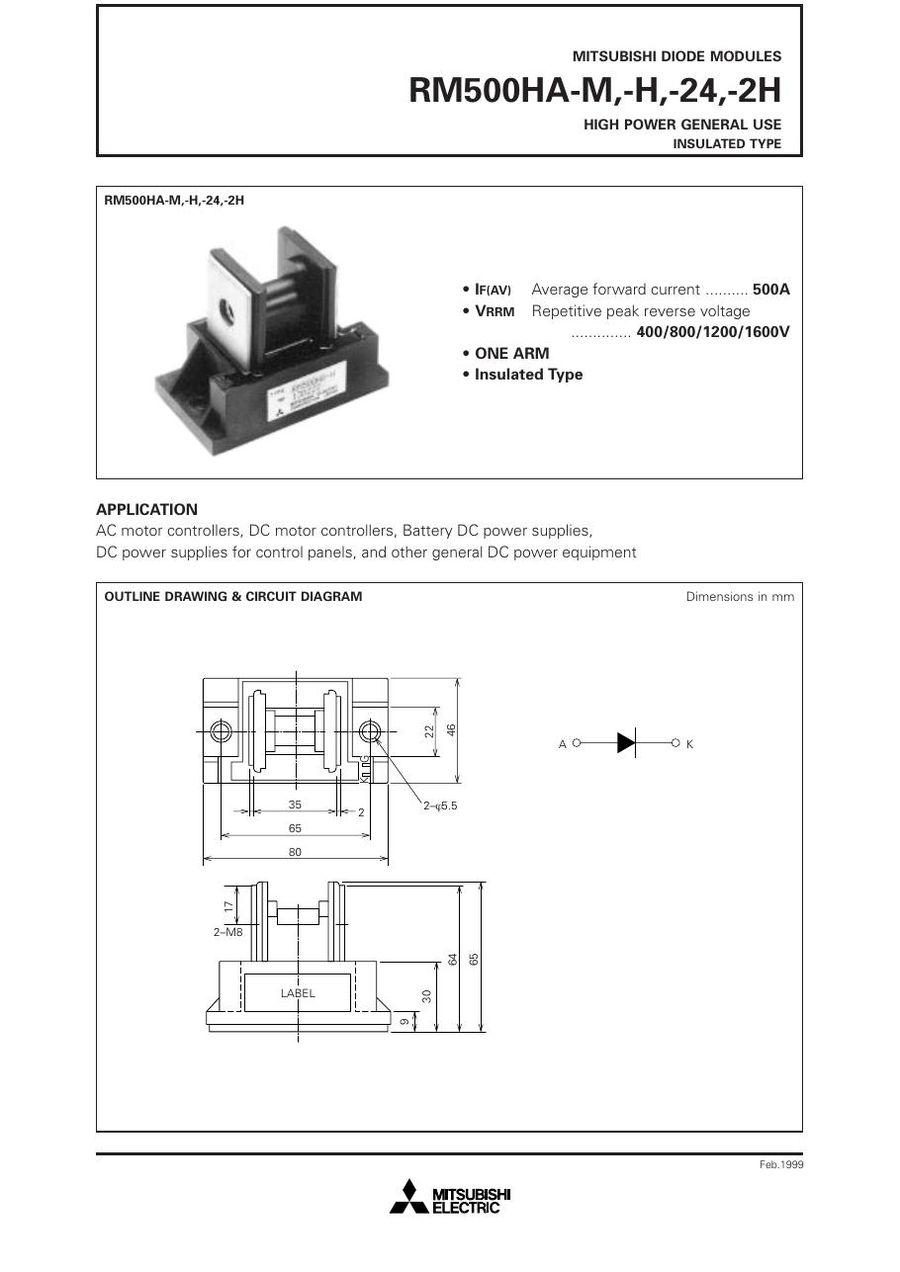

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM500HA-2H (reply within 24 hours)
