RM500DZ-24Mitsubishi - Diode Module

RM500DZ-24 Description

The Mitsubishi Electric RM500DZ-24 is a diode module rated at 1200 V and 500 A, available from USComponent. Typical applications for this type of device include input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM500DZ-24.

Summary of Features

Target Applications

Mitsubishi RM500DZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM500DZ-24 is a 1,200 V, 500 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Repetitive peak reverse voltage (VRRM)	1,200 V
Rated forward / output current	500 A
Datasheet	Available on this page (PDF)

Download RM500DZ-24 Datasheet

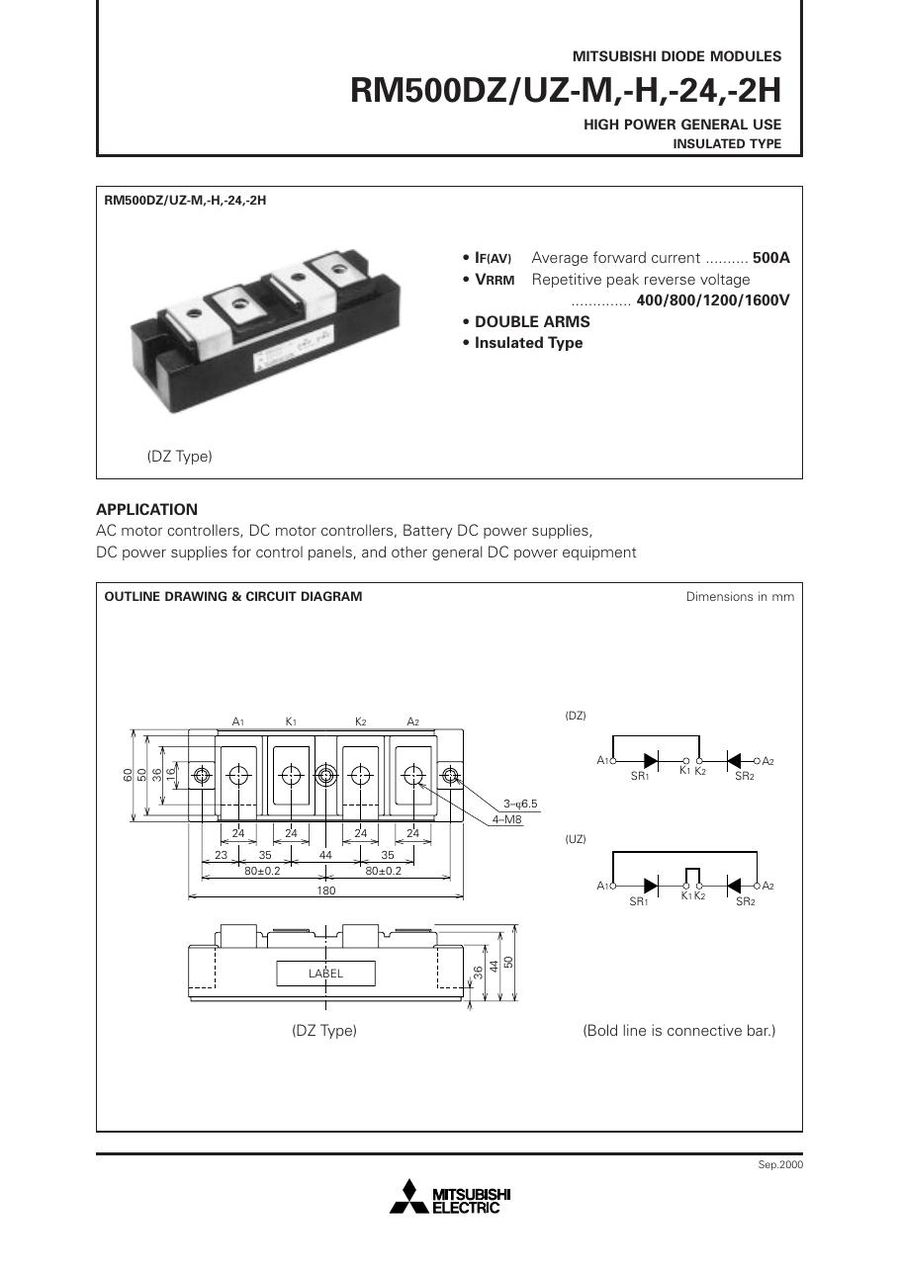

RM500DZ-24 PDF Datasheet
