RM500HA-24Mitsubishi - Diode Module

RM500HA-24 Description

The Mitsubishi Electric RM500HA-24 is a diode module rated at 1200 V and 500 A, available from USComponent. Typical applications for this type of device include input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM500HA-24.

Summary of Features

Target Applications

Mitsubishi RM500HA-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM500HA-24 is a 1,200 V, 500 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Repetitive peak reverse voltage (VRRM)	1,200 V
Rated forward / output current	500 A
Datasheet	Available on this page (PDF)

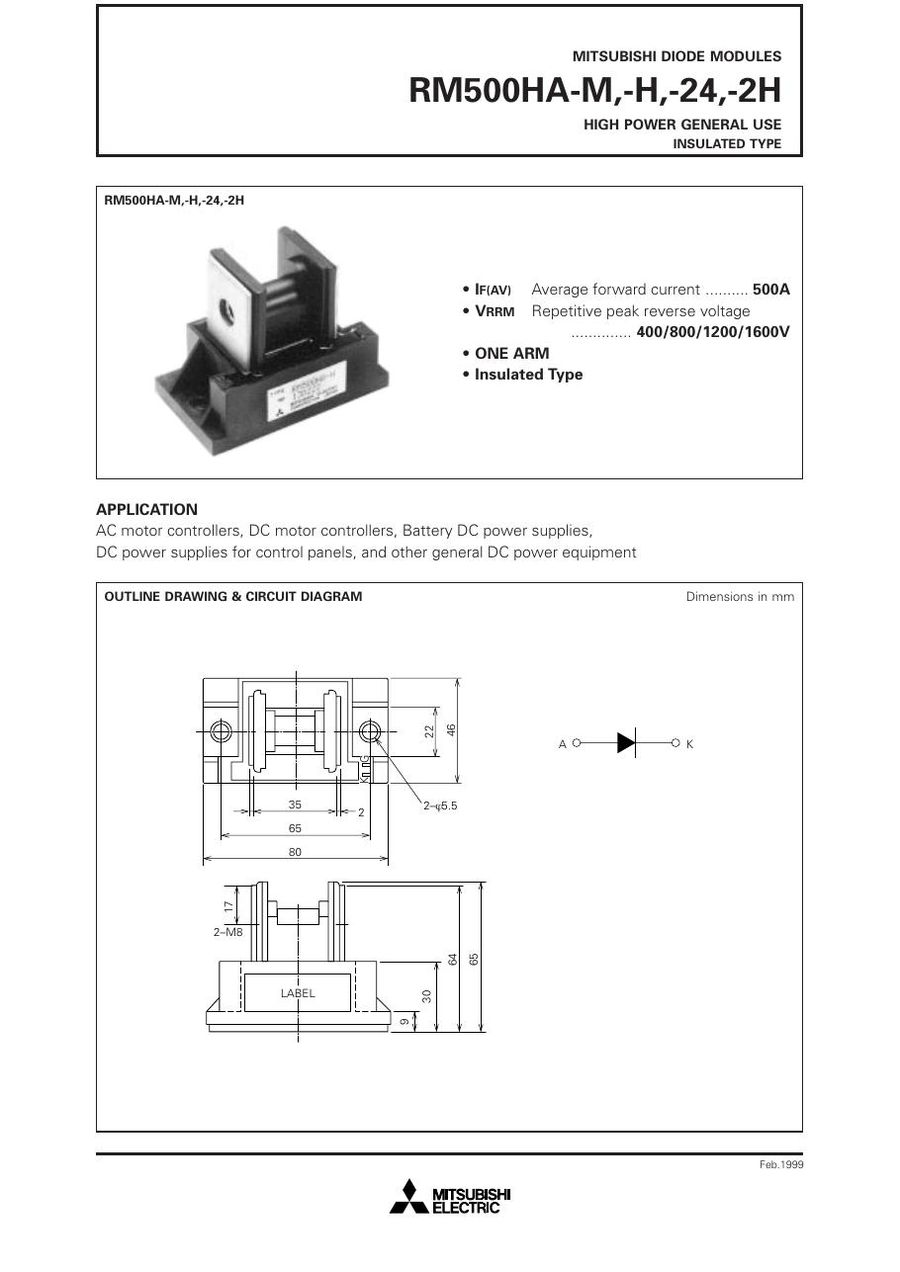

Download RM500HA-24 Datasheet

RM500HA-24 PDF Datasheet
