RM500UZ-H Mitsubishi - Diode Module

RM500UZ-H Description

Rated at 800 V and 500 A, the Mitsubishi Electric RM500UZ-H is a diode module. It is used in input rectifiers, freewheeling and clamping circuits, battery chargers and welding power sources. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

Need the RM500UZ-H? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi RM500UZ-H is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM500UZ-H is a 500 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Rated forward / output current	500 A

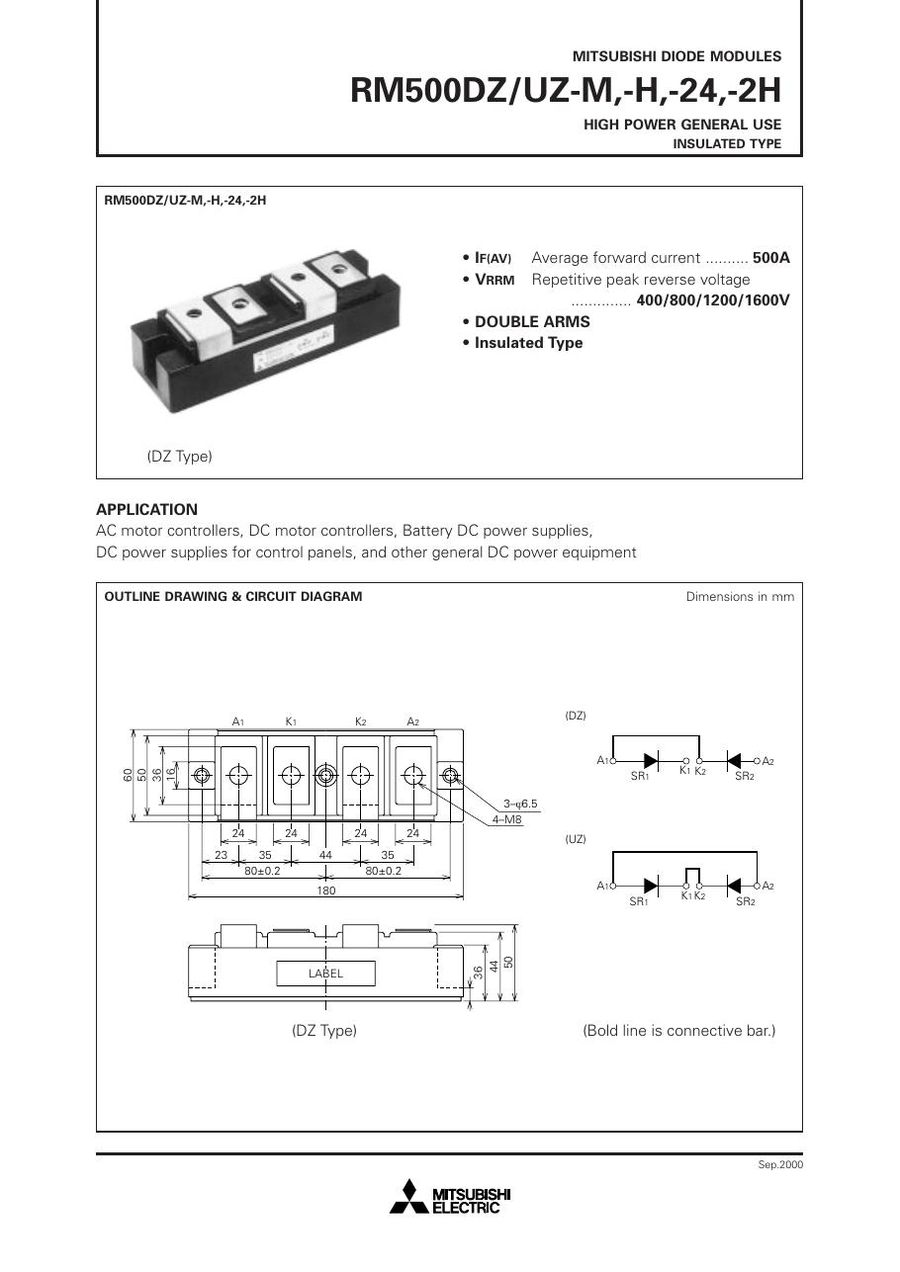

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM500UZ-H (reply within 24 hours)
