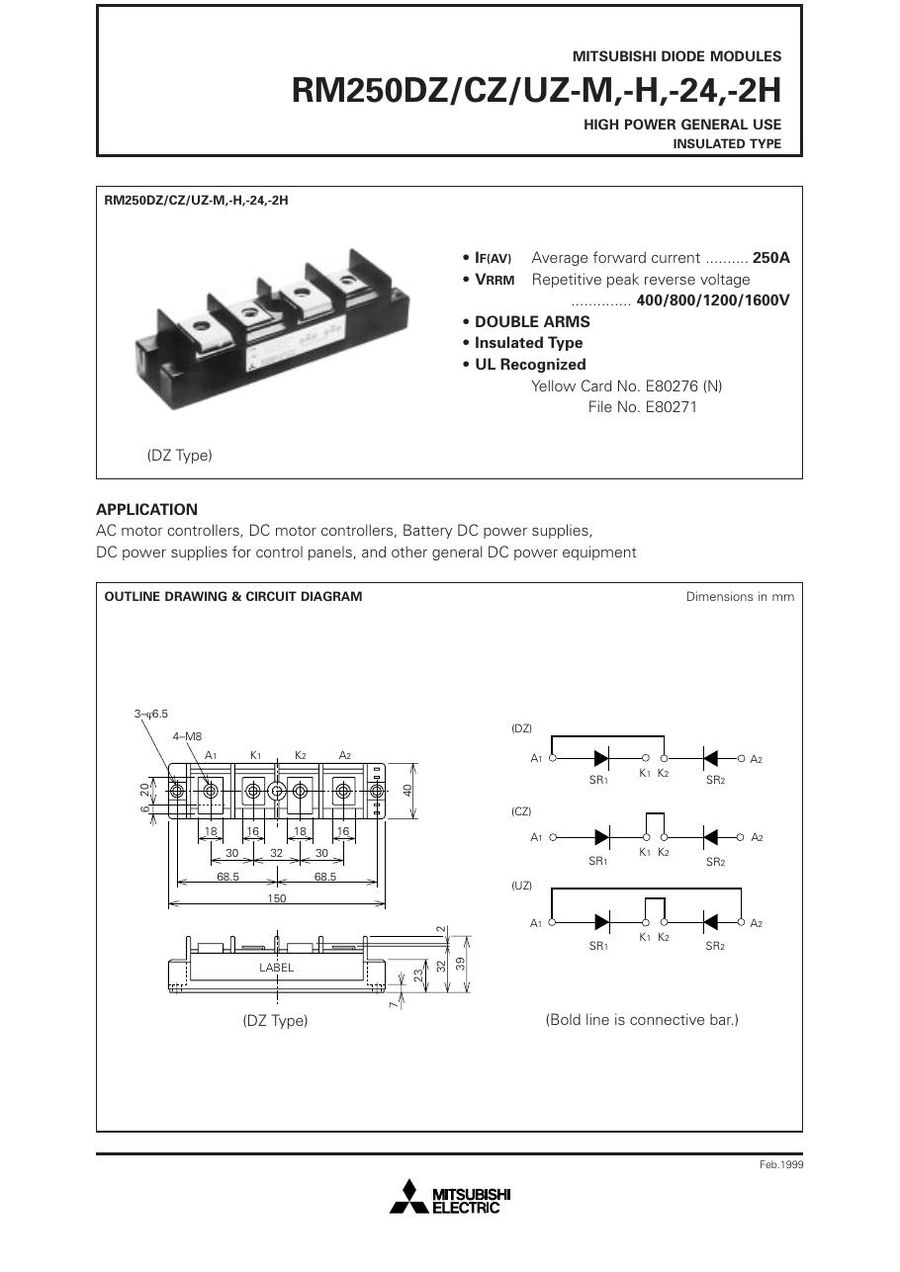

RM250UZ-24Mitsubishi - Diode Module

RM250UZ-24 Description

Mitsubishi Electric RM250UZ-24 is a diode module rated at 1600 V and 250 A. Components of this type are commonly used in input rectifiers for drives and power supplies, battery chargers, welding equipment and freewheeling circuits.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the RM250UZ-24.

Summary of Features

Target Applications

Mitsubishi RM250UZ-24 is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

RM250UZ-24 is a 1,200 V, 250 A rectifier diode module. Source: manufacturer datasheet.

Parameter	Value
Product type	Rectifier diode module
Repetitive peak reverse voltage (VRRM)	1,200 V
Rated forward / output current	250 A
Datasheet	Available on this page (PDF)

Download RM250UZ-24 Datasheet

RM250UZ-24 PDF Datasheet
