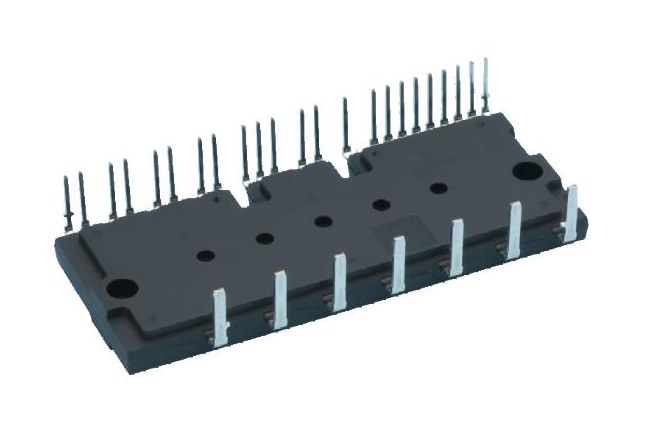

PSS10SA2FT Mitsubishi - Intelligent Power Module
Replacement for: Mitsubishi Electric recommends PSS10SA2FT as the replacement for PS22A73. We also supply the original part.
PSS10SA2FT Description
PSS10SA2FT is a 1200 V / 10 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric (Large package). Typical applications: AC 400V class motor control.
USComponent supplies PSS10SA2FT and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- 3 phase DC/AC inverter
- 1200V / 10A
- Built-in LPT-CSTBT (6th generation IGBT)
- Built-in bootstrap diodes with current limiting resistor
- Insulated transfer molding package
- N-side IGBT open emitter
Target Applications
Mitsubishi PSS10SA2FT is used for AC 400V class motor control.
Key Specifications
PSS10SA2FT is a 1200 V / 10 A six-pack (3-phase inverter) DIPIPM (dual in-line intelligent power module) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | DIPIPM (dual in-line intelligent power module) |
| Series | Ver.6 |
| Configuration | Six-pack (3-phase inverter) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 10 A |
| Package | Large |
| Package size | 31 x 79 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Technical document (PDF) | Request a quote for PSS10SA2FT (reply within 24 hours)
Related Part Numbers
| PSS15SA2FT 1200V, 15A | PSS05SA2FT 1200V, 5A | PSS25SA2FT 1200V, 25A | PSS35SA2FT 1200V, 35A |
| PSS50SA2FT 1200V, 50A | PSS75SA2FT 1200V, 75A | PSS10S92F6-AG 600V, 10A | PSS10S72FT 1200V, 10A |
| PSS10S51F6 600 V, 10 A | PSS10NC1FT 1200V, 10A | PSS10MC1FT 1200V, 10A | PSS15MC1FT 1200V, 15A |
| PSS15NC1FT 1200V, 15A | PSS15S51F6 600 V, 15 A | PSS15S92E6 600V, 15A | PSS15S92F6-AG 600V, 15A |
