PM15CMA060Mitsubishi - Intelligent Power Module

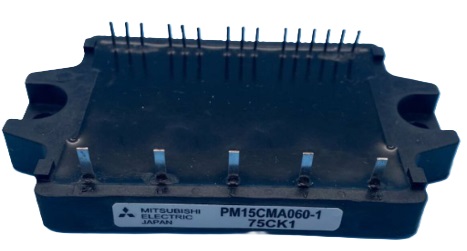

PM15CMA060 Description

The Mitsubishi Electric PM15CMA060 is an intelligent power module (IPM) rated at 600 V and 15 A, available from USComponent. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM15CMA060.

Target Applications

Mitsubishi PM15CMA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	International Rectifier
Configuration	IGBT intelligent module: three-phase bridge with gate drive and protection (over current, short circuit, earth fault, under voltage, over temperature)
VCE	600 V
IC	15 A (TC = 25 °C) / 7.0 A (TC = 85 °C)
Supply voltage (P-N)	450 V
Supply voltage protected against OC and SC	400 V
Isolation voltage	2500 V RMS (1 min)
Mounting torque	2.0 N·m
Junction temperature	-20 to +150 °C
