PM15CNA060 Mitsubishi - Intelligent Power Module

PM15CNA060 Description

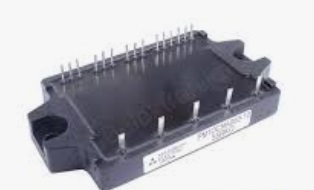

Mitsubishi Electric PM15CNA060 is an intelligent power module (IPM) rated at 600 V and 15 A. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

We help engineers and repair technicians find parts like the PM15CNA060, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Target Applications

Mitsubishi PM15CNA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications
